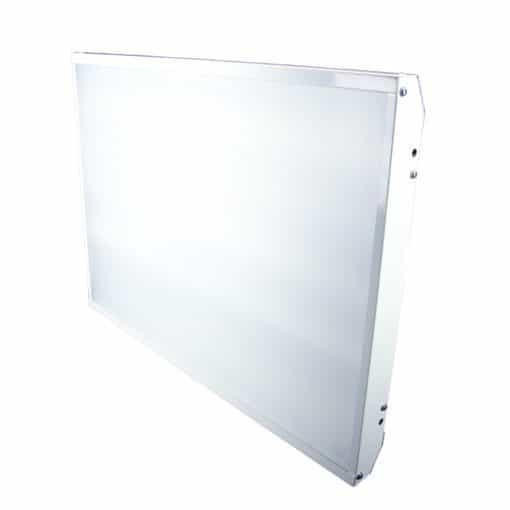

TCP HB9000150 LED Linear High Bay | 150W Fixture | 5000K Daylight | Efficient Lighting for Warehouses, Retail, and Industry
The TCP HB9000150 LED Linear High Bay is engineered for high ceiling applications, delivering 20,250 lumens of daylight-bright 5000K light with just 150 watts of power. Featuring a steel frame and frosted lens for glare reduction, this fixture ensures smooth, even illumination without shadows. Designed to replace 250W–400W HID systems, it offers reliable performance, lower energy costs, and reduced maintenance needs.
KEY FEATURES:
- High Lumen Output: Produces 20,250 lumens of bright 5000K daylight light.
- Energy Savings: 150W LED fixture replaces 250W–400W HID systems.
- Even Lighting: Frosted lens eliminates glare and prevents harsh shadows.
- Durable Build: Robust steel frame with riveted corners for long-lasting use.
- Flexible Control: 0-10V dimming provides smooth lighting adjustments.
APPLICATIONS:
- Warehouses requiring high-efficiency overhead lighting.
- Commercial retail spaces needing daylight illumination.
- Industrial facilities with high ceiling lighting requirements.
SPECIFICATIONS:
- Wattage: 150W
- Lumens: 20,250
- Color Temperature: 5000K
- Voltage: 120–277V
- Efficacy: 135 LPW
- CRI: 80+
- Beam Angle: Wide distribution with angled LED design
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Lifespan: 50,000 hours
- Dimmable: 0-10V
- Dimensions: 23.8" x 12.6" x 3.8"
- Mounting: Surface, suspended, or pendant
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed
- Energy Certifications: DLC 5.1 Premium
- Location Rating: Damp location rated
- Warranty: 5-year limited warranty
