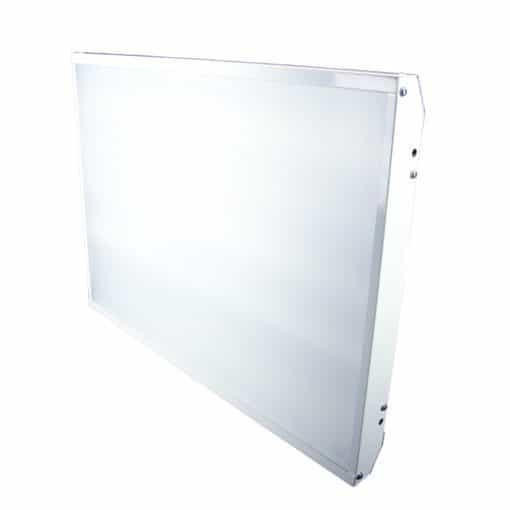

HB9000150LS1D LED Linear High Bay Fixture | Bright 5000K Daylight Illumination | Energy-Efficient Design for Warehouses and Retail
The TCP HB9000150LS1D LED Linear High Bay is engineered to replace traditional HID systems while delivering high-output, glare-free light. Its frosted lens ensures smooth illumination without shadows, and the angled LED design creates a wide beam spread ideal for high-ceiling environments. With durable construction and a long 50,000-hour rated life, this fixture reduces maintenance cycles in commercial and industrial facilities.
KEY FEATURES:
- Durable Housing: Post-painted steel frame with rounded edges prevents scalloping and ensures long service life.
- Glare Reduction: Frosted lens delivers even illumination and reduces eye strain in occupied spaces.
- Flexible Mounting: Includes 2 tong hangers, jack chains, and hub mount kit for fast installation options.
- Energy Savings: Provides 20,250 lumens while replacing up to 400W HID fixtures, cutting energy costs.
- Occupancy Sensor: Include Leviton Occupancy Sensor w/ Daylight Harvesting, 40' or less, 120V, 277V or 347V
APPLICATIONS:
- Warehouses with tall ceilings requiring wide beam coverage.
- Retail settings seeking bright, glare-free illumination.
- Industrial and commercial facilities upgrading from HID systems.
SPECIFICATIONS:
- Wattage: 150W
- Lumens: 20,250
- Color Temperature: 5000K
- Voltage: 120-277V
- Lifespan: 50,000 hours
- Dimmable: 0-10V smooth dimming
- Dimensions: 23.8" x 12.6" x 3.8"
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed
- Energy Certifications: DLC 5.1 Premium, RoHS Compliant
- Location Rating: Suitable for damp locations
- Warranty: 5-year limited warranty
