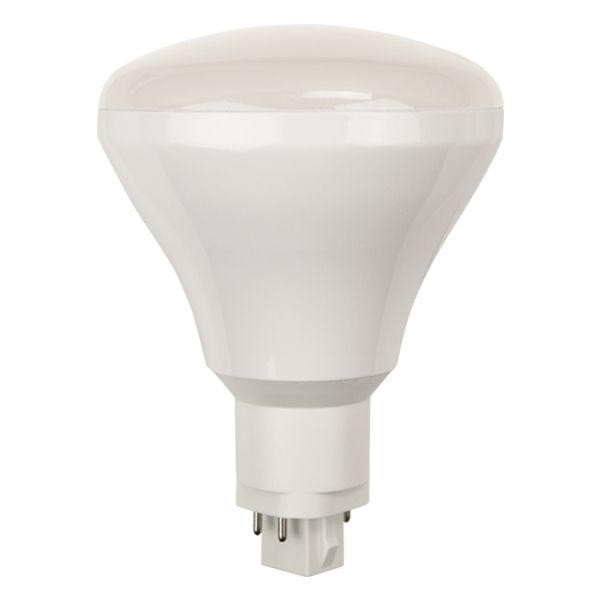

LED BR30 Retrofit Lamp for Downlights | Warm White 2700K | Dimmable
Replace outdated CFL PL lamps with the TCP L17PLVD5027K LED BR30, delivering inviting warm white illumination and fast installation in commercial downlights. Eliminate frequent lamp changes and annoying flicker while reducing HVAC loads in hospitality, retail, and office settings. Its plug-and-play Type A compatibility ensures an upgrade without rewiring, so you maintain workplace productivity and comfort with minimal disruption.
KEY FEATURES:
- Easy Upgrade: Installs directly into existing electronic ballasts for a quick, labor-saving retrofit process.
- Superior Dimming: Maintains smooth dimming performance when used with recommended ballasts.
- Focused Illumination: Vertical BR30 shape offers targeted beam optics for efficient overhead lighting.
- Low Maintenance: Long 50,000 hour rated life reduces replacement cycles and downtime.
- Instant Performance: No warm-up period-enjoy full illumination and color the moment it's switched on.
APPLICATIONS:
- Excellent fit for retail and hospitality recessed ceiling fixtures, commercial office lobbies, and corridor downlights.
- Designed for G24q/GX24q 4-pin sockets in BR30 housings-ensuring easy replacement in compatible ballasted fixtures.
- Tip: For maximum energy savings and performance, use with listed compatible electronic ballasts.
SPECIFICATIONS:
- Wattage: 17W
- Lumens: 1700
- Color Temperature: 2700K
- CRI: 80
- Beam Angle: 110°
- Voltage: 120-277V, 347V
- Base Type: G24q/GX24q (4-Pin)
- Shape: BR30 Vertical
- Lifespan: 50,000 hours
- Dimmable: Yes (with recommended 0-10V dimming ballast)
- MOL: 5.2 inches
- DIA: 3.7 inches
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: RoHS Compliant
- Warranty: 5-year warranty
