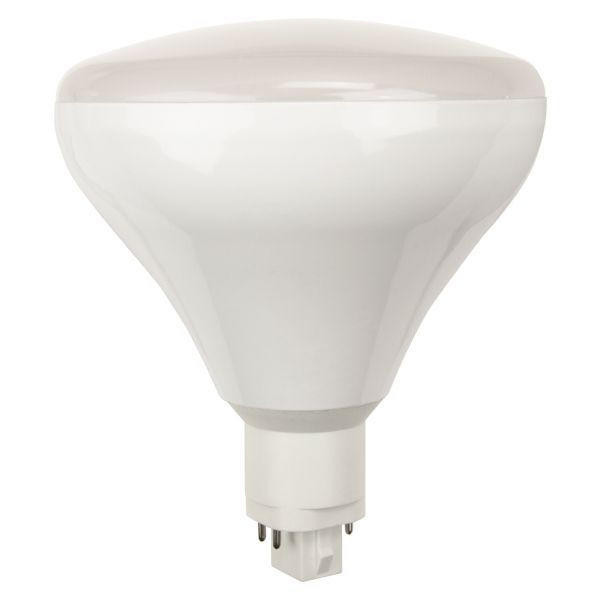

TCP L19PLVD5030K Vertical LED PL Lamp | 19W Plug and Play Retrofit | Warm White 3000K Light for Offices, Retail, and Hospitality
The TCP L19PLVD5030K offers an efficient replacement for outdated CFL PL lamps, delivering warm white 3000K light with improved reliability and lower maintenance needs. This LED retrofit installs directly into existing ballasts, making it a convenient plug-and-play solution for commercial downlights and other indoor applications.
KEY FEATURES:
- Easy Retrofit: Plug-and-play design works with existing 4-pin CFL ballasts—no rewiring required.
- Energy Savings: Consumes just 19W while replacing 26–42W CFLs, lowering utility costs by over 50%.
- Improved Comfort: 3000K warm white light creates inviting spaces for customers and staff.
- Dimmable Performance: Compatible with 0–10V dimming systems for customized lighting control.
- Reliable Lifespan: Rated for 50,000 hours with a robust 5-year warranty to reduce maintenance cycles.
APPLICATIONS:
- Ideal for recessed downlights in retail, office, and hospitality environments.
- Perfect choice for sconces and ceiling fixtures needing reliable warm light.
- Best used as a simple plug-in replacement for vertical G24q/GX24q base fixtures.
SPECIFICATIONS:
- Wattage: 19W
- Lumens: 1,800–1,950 (varies by CCT)
- Color Temperature: 3000K
- CRI: 80
- Voltage: 120–277V, 347V (ballast dependent)
- Base Type: G24q/GX24q (4-pin)
- Shape: Vertical BR40 PL Lamp
- Lifespan: 50,000 hours
- Dimmable: Yes, with 0–10V systems
- Beam Angle: 110°
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed (US & Canada)
- Environmental: RoHS Compliant, contains no mercury
- Warranty: 5-year limited warranty
