Description

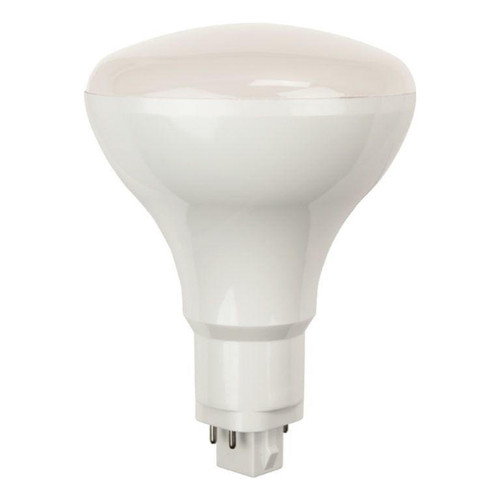

TCP L9PLVD5030K LED PL BR30 Soft White Dimmable Retrofit Downlight
Upgrade outdated compact fluorescent downlights in offices or guest spaces with the TCP L9PLVD5030K LED PL lamp. This soft white BR30 plug-and-play retrofit delivers immediate energy savings and a smoother, flicker-free environment, with convenient dimming when paired with compatible ballasts.
KEY FEATURES:
- Instant Plug-and-Play: Installs seamlessly into existing G24q/GX24q 4-pin bases using electronic ballasts - no rewiring required.
- Energy Savings: Uses up to 50% less energy than traditional 13-18W CFLs, helping cut monthly utility costs.
- Quality Dimming: Smooth, compatible dimming function when used with 0-10V dimming ballasts for mood or task lighting control.
- Longer Life: Rated 50,000 hours for fewer lamp changes and lower maintenance expenses over time.
- Consistent Illumination: Uniform 110° beam angle minimizes shadowing in vertical or can installations.
APPLICATIONS:
- Fits commercial recessed downlights in offices, lobbies, and hospitality venues.
- Great choice for retail stores seeking reliable, low-maintenance overhead lighting.
- Best performance when paired with compatible 4-pin CFL ballasts (see spec sheet for list).
SPECIFICATIONS:
- Wattage: 9W
- Lumens: 1100
- Color Temperature: 3000K
- CRI: 80
- Beam Angle: 110°
- Voltage: 120-277V, 347V
- Base Type: G24q/GX24q (4-Pin)
- Shape: Vertical BR30
- Length: 5.2 inches
- Diameter: 3.7 inches
- Lifespan: 50,000 hours
- Dimmable: Yes (0-10V dimming ballast required)
CERTIFICATIONS & ADDITIONAL NOTES:
- Location Rating: Cannot Source
- Safety Certifications: RoHS Compliant
- Warranty: 5-year limited
