Description

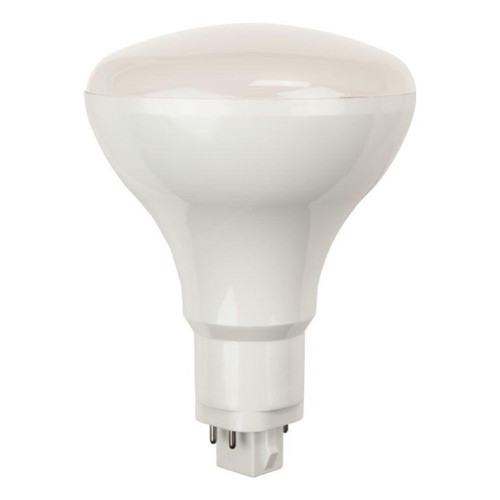

Replacement LED PL Lamp | 9W | Type A Plug & Play | Cool White
The TCP L9PLVD5041K is a Type A plug-and-play LED PL lamp designed to replace traditional fluorescent PL lamps in commercial downlights. Operating on existing compatible CFL ballasts, this vertical BR30-style LED PL lamp delivers efficient, uniform illumination with reduced energy consumption. Its Cool White 4100K color temperature makes it well-suited for professional and task-oriented environments.
Product Specifications
- Brand: TCP
- Model: L9PLVD5041K
- Product Type: LED PL Lamp
- Operation Type: Type A – Ballast Dependent (Plug & Play)
- Wattage: 9W
- CFL Ballast Equivalent: 13W–18W
- Voltage: 120–277V, 347V
- Lumen Output: 1,150 lumens
- Color Temperature: 4100K
- CRI: 80
- Beam Angle: 110°
- Power Factor: 0.99
- Base Type: G24q / GX24q
- Rated Life: 50,000 hours
- Minimum Starting Temperature: -30°C
- Maximum Operating Temperature: 40°C
- Overall Length (MOL): 5.2 inches
- Diameter: 3.7 inches
- Dimmable: Yes, with compatible 0–10V dimming ballast
- Warranty: 5-Year Limited Warranty
Benefits
- Direct plug-and-play replacement for fluorescent PL lamps
- Uses up to 50% less energy than CFL alternatives
- Cool White output ideal for offices, retail, and commercial interiors
- Long 50,000-hour rated life reduces maintenance
- High power factor supports efficient electrical performance
Applications
- Commercial recessed downlights
- Retail and hospitality lighting
- Office and professional spaces
- Sconces and general lighting fixtures
