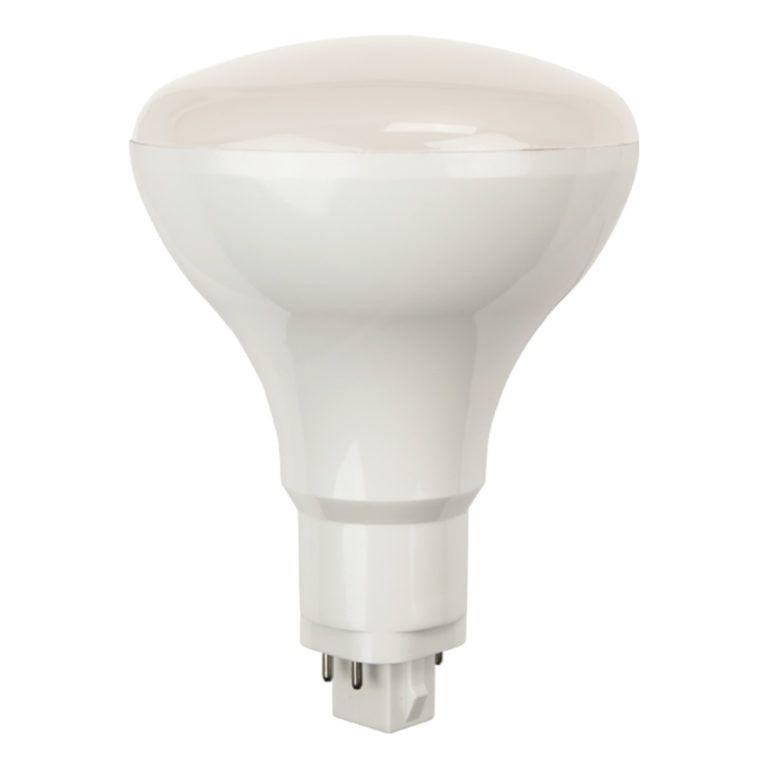

PL Vertical BR30 9W Dimmable LED | Daylight 5000K | Plug-In Retrofit Solution
Transform commercial downlighting with the TCP L9PLVD5050K, an advanced LED solution for updating older fluorescent PL lamps. This lamp delivers crisp, daylight illumination, turns on instantly with no warm-up, and is optimized for high-use environments. By switching to LED, facilities reduce heat buildup, lower maintenance cycles, and achieve immediate energy savings.
KEY FEATURES:
- Effortless Retrofit: Type A plug-and-play design installs directly into G24q or GX24q sockets using existing ballasts.
- Crisp Daylight Visibility: 5000K color temperature improves clarity for retail, office, and display areas.
- Dimmable Control: Works with recommended dimming ballasts to tailor brightness to any environment.
- Reduced Upkeep: Impressive 50,000-hour rated lifespan slashes relamping frequency and maintenance costs.
- Instant On: Flicker-free operation enhances comfort and visual focus from the moment you flip the switch.
APPLICATIONS:
- Perfect for recessed commercial downlights in corporate offices and retail settings.
- Works well for open sconce fixtures and display lighting in hospitality or gallery spaces.
- For best results, use in BR30 housings with compatible G24q or GX24q ballasts.
SPECIFICATIONS:
- Wattage: 9W
- Lumens: 1175
- Color Temperature: 5000K
- CRI: 80
- Voltage: 120-277V, 347V
- Base Type: G24q/GX24q
- Shape: Vertical BR30
- Lifespan: 50,000 hours
- Dimmable: Yes (with compatible 0-10V dimming ballast)
- Beam Angle: 110°
- Power Factor: 0.99
- MOL: 5.2 in
- Diameter: 3.7 in
CERTIFICATIONS & ADDITIONAL NOTES:
- RoHS Compliant
- Warranty: 5-year limited warranty
