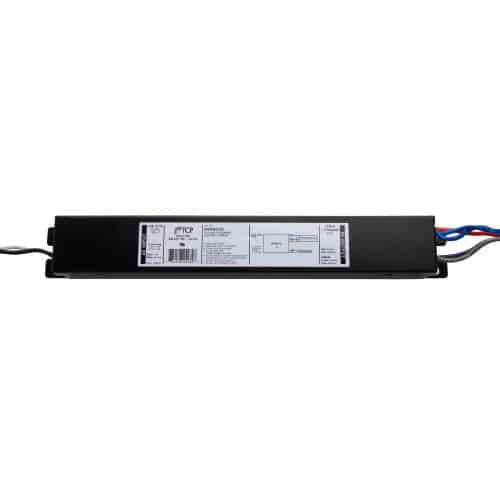

LDT5HO225C High Output LED T5 Type C Driver | 2-Lamp 50W System | Compatible with 3500K, 4000K, 5000K Retrofit Tubes
The TCP LDT5HO225C driver is designed for powering high output LED T5 Type C lamps, offering a reliable solution for retrofitting traditional fluorescent systems. Supporting 2-lamp configurations, it provides 50W of total system power and ensures efficient, dimmable performance when paired with compatible TCP LED tubes. Ideal for large-scale commercial and institutional applications, this driver helps reduce energy costs while extending system longevity.
KEY FEATURES:
- Optimized Output: Provides 50W total system power for 2-lamp HO LED T5 retrofits.
- Dimming Control: Works with 0-10V dimming systems for adaptable light levels.
- Energy Efficient: Replaces fluorescent drivers with a more efficient LED-based design.
- Durable Build: Engineered for long-lasting use in demanding commercial settings.
- Reliable Performance: Rated for 50,000 hours with a 5-year warranty.
APPLICATIONS:
- Schools and universities upgrading fluorescent fixtures.
- Commercial offices and retail spaces needing energy-efficient retrofits.
- Healthcare facilities requiring consistent and reliable illumination.
SPECIFICATIONS:
- Item ID: LDT5HO225C
- Type: T5 Type C High Output Driver
- System Wattage: 50W
- Lumens: 6400–6800 (with compatible lamps)
- Efficacy: 136 LPW
- Voltage: 120–277V
- Operating Temperature: -20°C to 45°C (-4°F to 113°F)
- Lifespan: 50,000 hours
- Dimmable: 0–10V
- Dimensions: 1.3" x 9.5" x 1.1"
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: UL, ETL, RoHS Compliant
- Energy Certification: DLC Qualified (when paired with compatible lamps)
- Location Rating: Suitable for damp and dry locations
- Warranty: 5-year limited warranty
