Description

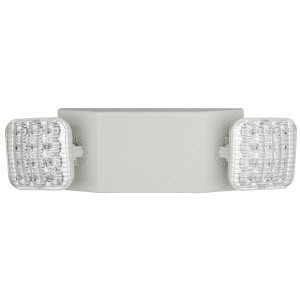

Low-Profile Self-Diagnostic LED Emergency Light For Wall Or Ceiling Mounts | Damp Location Rated | Maintains 90-Minute Emergency Illumination
Provide reliable, code-compliant emergency illumination with a compact TCP low-profile unit that simplifies installation and reduces maintenance through automatic self-testing and a rechargeable NiCd battery for dependable backup operation.
KEY FEATURES:
- Automatic Self-Test: Built-in self-diagnostic performs monthly, biannual, and annual tests to help maintain code compliance with less manual inspection.
- Adjustable Ultra-Bright Heads: Two adjustable LED lamp heads and high-performance reflectors deliver targeted illumination for improved wayfinding.
- Reliable Battery Backup: Internal 3.6V rechargeable NiCd battery and solid-state transfer switch provide minimum 90-minute emergency operation.
- Damp Location Rated: Durable thermoplastic housing and V-O flame-retardant construction for indoor and covered outdoor applications.
- Contractor-Friendly Mounting: Universal knockout pattern and suitable for wall or ceiling installations to speed retrofits.
APPLICATIONS:
- Retail spaces and shopping centers
- Schools and educational facilities
- Parking lots and covered parking areas
- Tip: Use the adjustable lamp heads to optimize center-to-center spacing for egress pathways.
SPECIFICATIONS:
- Form Factor: Low-Profile LED Emergency Light
- Color: White
- Wattage: 3W
- Battery: 3.6V Rechargeable NiCd
- Emergency Runtime: Minimum 90 minutes
- Voltage: 120/277V
- Listings: UL Damp Location, UL924, NFPA 101, NEC, OSHA, Local and State codes
- Warranty: 5-year on electronics and housing; battery prorated for 5 years
- Height: 4.3"
- Width: 12.4"
- Life Hours: 50000
- Min Start Temp: 32°F (0°C)
- Max Oper Temp: 122°F (50°C)
- Options On This SKU: Self-Diagnostic Test
- DLC: No
