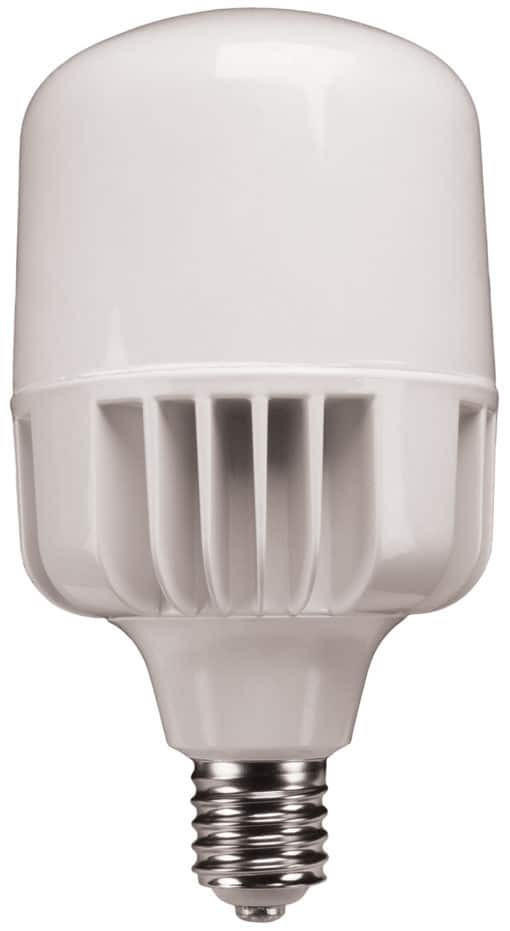

TCP LHID17540 LED HID Retrofit | 65W T-Shape Lamp | 4000K Cool White | Replacement for 175–250W Metal Halide
The TCP LHID17540 LED T-Shape HID lamp is an energy-efficient alternative to traditional metal halide bulbs, consuming just 65 watts while delivering 9000 lumens of cool white light. With its directional 180° beam angle, this retrofit maximizes usable light on the floor and is engineered for long-lasting performance with reduced maintenance needs. Designed for enclosed high bay and low bay fixtures, it offers dependable operation and shatter-resistant safety.
KEY FEATURES:
- High Output: Produces 9000 lumens of bright 4000K light for enhanced visibility.
- Energy Savings: Uses 65W to replace 175–250W metal halide lamps, reducing operating costs.
- Directional Design: 180° beam angle ensures efficient light distribution.
- Durable Build: Shatter-resistant construction and isolated driver improve reliability.
- Long Life: Rated for 50,000 hours to minimize replacements and maintenance.
APPLICATIONS:
- Ideal for warehouses, gymnasiums, and large retail spaces with high bay fixtures.
- Perfect for enclosed low bay applications requiring dependable, bright light.
- Best used as a retrofit for 175–250W metal halide lamps in enclosed fixtures.
SPECIFICATIONS:
- Wattage: 65W
- Equivalent Wattage: 175–250W Metal Halide
- Lumens: 9,000
- Efficacy: 152 LPW
- Color Temperature: 4000K
- CRI: ≥ 80
- Beam Angle: 180°
- Voltage: 120–277V
- Base: EX39
- Dimensions: 10.3" x 5.2"
- Weight: 2.0 lbs
- Lifespan: 50,000 hours
- Operating Temperature: -30ºC to 45ºC
- Dimmable: No
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed
- Location Rating: Wet location rated
- Surge Protection: 6kV
- Warranty: 5-year limited warranty
