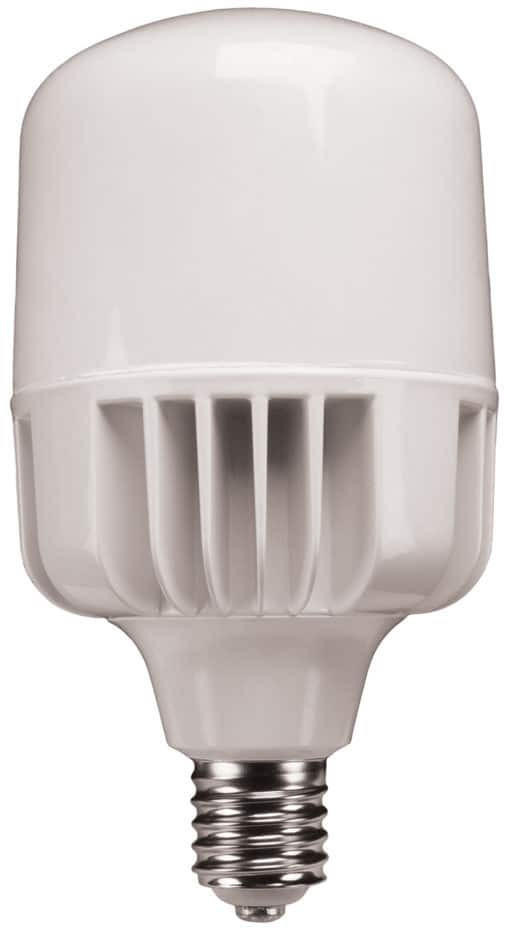

TCP LHID17550 LED HID Retrofit | 65W T-Shape Lamp | 5000K Daylight | Replacement for 175–250W Metal Halide
The TCP LHID17550 LED T-Shape HID lamp provides a powerful yet efficient solution for upgrading 175–250W metal halide systems. Using only 65 watts, it delivers 9000 lumens of daylight-bright 5000K illumination with a wide 180° beam angle for optimal coverage. Designed with a shatter-resistant build, isolated driver, and surge protection, this retrofit ensures safe, long-lasting, and cost-effective operation in enclosed high bay and low bay fixtures.
KEY FEATURES:
- Bright Output: Produces 9000 lumens of daylight-quality 5000K light.
- Energy Efficiency: Uses 65W to replace 175–250W metal halide lamps, lowering energy costs.
- Wide Beam Spread: 180° directional design improves usable light on the floor.
- Rugged Design: Shatter-resistant housing and isolated driver enhance reliability.
- Extended Lifespan: Rated for 50,000 hours with integrated surge protection.
APPLICATIONS:
- Ideal for warehouses, gyms, and industrial facilities requiring strong daylight illumination.
- Perfect for enclosed low bay fixtures needing durable retrofit lighting.
- Best replacement option for 175–250W metal halide lamps in enclosed luminaires.
SPECIFICATIONS:
- Wattage: 65W
- Equivalent Wattage: 175–250W Metal Halide
- Lumens: 9,000
- Efficacy: 152 LPW
- Color Temperature: 5000K
- CRI: ≥ 80
- Beam Angle: 180°
- Voltage: 120–277V
- Base: EX39
- Dimensions: 10.3" x 5.2"
- Weight: 2.4 lbs
- Lifespan: 50,000 hours
- Operating Temperature: -30ºC to 45ºC
- Dimmable: No
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed
- Location Rating: Wet location rated
- Surge Protection: 6kV
- Warranty: 5-year limited warranty
