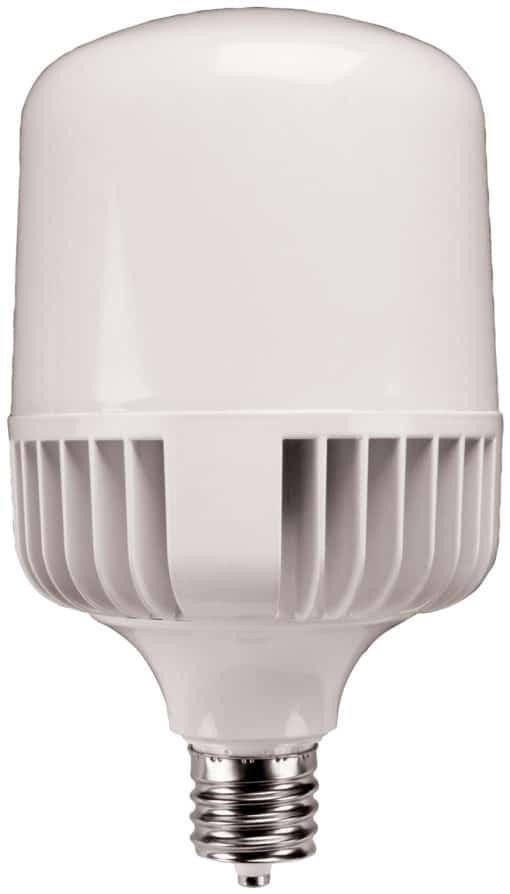

TCP LHID25040 LED HID Retrofit | 90W T-Shape Lamp | 4000K Cool White | Replacement for 250–400W Metal Halide
The TCP LHID25040 LED T-Shape HID lamp is a high-performance retrofit designed to replace 250–400W metal halide systems. Consuming only 90 watts, it delivers 12,600 lumens of cool white 4000K light with a wide 180° beam angle for superior coverage. Featuring shatter resistance, an isolated driver, and integrated surge protection, this lamp ensures efficient, safe, and long-lasting operation in enclosed high bay and low bay fixtures.
KEY FEATURES:
- High Output: Produces 12,600 lumens of bright 4000K light for excellent visibility.
- Energy Savings: Uses just 90W to replace 250–400W metal halide lamps.
- Directional Beam: 180° design maximizes light distribution to the floor.
- Durable Build: Shatter-resistant construction with isolated driver for safety and reliability.
- Long Life: Rated for 50,000 hours and equipped with 6kV surge protection.
APPLICATIONS:
- Ideal for warehouses, gymnasiums, and large retail spaces requiring strong illumination.
- Perfect retrofit for enclosed high bay and low bay fixtures in industrial settings.
- Best used as a replacement for 250–400W metal halide lamps in enclosed luminaires.
SPECIFICATIONS:
- Wattage: 90W
- Equivalent Wattage: 250–400W Metal Halide
- Lumens: 12,600
- Efficacy: 151 LPW
- Color Temperature: 4000K
- CRI: ≥ 80
- Beam Angle: 180°
- Voltage: 120–277V
- Base: EX39
- Dimensions: 10.3" x 5.2"
- Weight: 2.4 lbs
- Lifespan: 50,000 hours
- Operating Temperature: -30ºC to 45ºC
- Dimmable: No
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed
- Location Rating: Wet location rated
- Surge Protection: 6kV
- Warranty: 5-year limited warranty
