Description

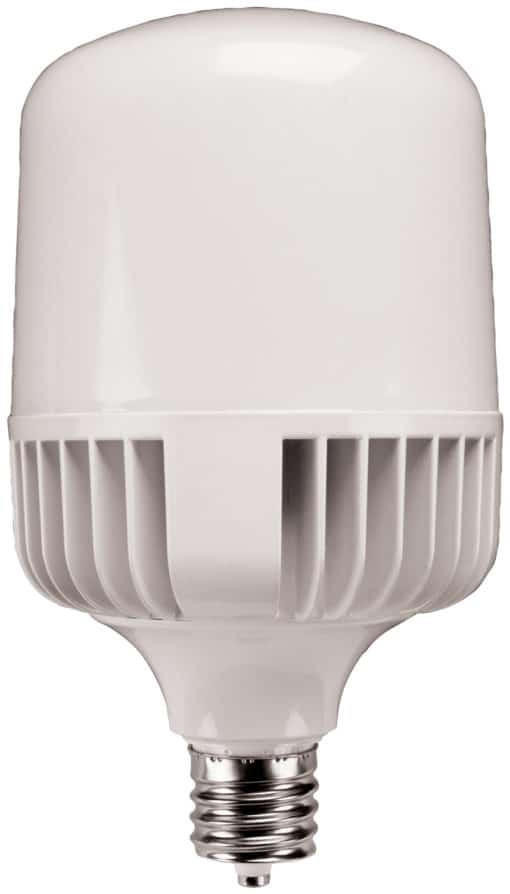

TCP LHID25050 LED HID Retrofit | 90W T-Shape Lamp | 5000K Daylight | Replacement for 250–400W Metal Halide
The TCP LHID25050 LED T-Shape HID lamp is a powerful retrofit solution designed to replace 250–400W metal halide bulbs while consuming only 90 watts. Delivering 12,600 lumens of daylight-bright 5000K light, it features a 180° beam angle for optimal floor coverage. Built with a shatter-resistant housing, isolated driver, and integrated surge protection, this lamp ensures long-lasting, efficient, and safe performance in enclosed high bay and low bay fixtures.
KEY FEATURES:
- Powerful Light Output: Produces 12,600 lumens of bright 5000K daylight illumination.
- Energy Savings: Consumes 90W while replacing 250–400W metal halide lamps.
- Wide Coverage: 180° directional design maximizes useful light distribution.
- Durable Design: Shatter-resistant construction with isolated driver for heat dissipation.
- Reliable Lifespan: Rated for 50,000 hours and equipped with 6kV surge protection.
APPLICATIONS:
- Perfect for warehouses, gymnasiums, and industrial spaces requiring daylight-bright output.
- Ideal retrofit for enclosed high bay and low bay fixtures in commercial facilities.
- Best used as a replacement for 250–400W metal halide lamps in enclosed luminaires.
SPECIFICATIONS:
- Wattage: 90W
- Equivalent Wattage: 250–400W Metal Halide
- Lumens: 12,600
- Efficacy: 151 LPW
- Color Temperature: 5000K
- CRI: ≥ 80
- Beam Angle: 180°
- Voltage: 120–277V
- Base: EX39
- Dimensions: 10.3" x 5.2"
- Weight: 2.4 lbs
- Lifespan: 50,000 hours
- Operating Temperature: -30ºC to 45ºC
- Dimmable: No
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed
- Location Rating: Wet location rated
- Surge Protection: 6kV
- Warranty: 5-year limited warranty
