Description
2U LED PL Retrofit Lamp | Neutral White 3500 K | G24d/GX24d/G24q/GX24q Base | Type B Ballast Bypass Installation

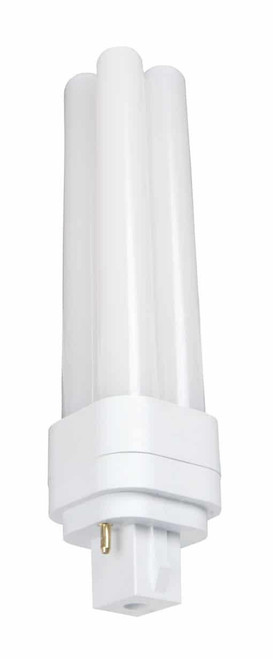

The TCP LPL218B2535K provides a balanced 3500K neutral white output, making it ideal for office, retail, and hospitality environments. Consuming just 8 watts, it replaces 13–26W CFL lamps while bypassing the ballast for improved efficiency and reliability. Its 2U design ensures even, omni-directional light distribution for professional-grade illumination.:contentReference[oaicite:2]{index=2}
KEY FEATURES:
- Bypass Retrofit: Type B design eliminates ballast issues and increases efficiency.:contentReference[oaicite:3]{index=3}
- Energy Efficient: Uses only 8W while replacing 13–26W CFLs, lowering energy costs.:contentReference[oaicite:4]{index=4}
- Neutral White Light: 3500K color temperature provides balanced, professional illumination.:contentReference[oaicite:5]{index=5}
- Wide Compatibility: Fits G24d, GX24d, G24q, and GX24q base fixtures for easy retrofits.:contentReference[oaicite:6]{index=6}
- Reliable Performance: Rated for 25,000 hours and backed by a 5-year warranty.:contentReference[oaicite:7]{index=7}
APPLICATIONS:
- Commercial downlights in offices and retail stores.
- Hospitality spaces needing reliable, professional lighting.
- Best used in G24d/GX24d/G24q/GX24q socket fixtures for ballast-free retrofits.:contentReference[oaicite:8]{index=8}
SPECIFICATIONS:
- Wattage: 8W
- Lumens: 1025
- Efficacy: 128.1 LPW
- Color Temperature: 3500K
- CRI: 80
- Voltage: 120-277V
- Base Type: G24d / GX24d / G24q / GX24q
- CFL Wattage Equivalent: 13–26W
- MOL: 5.7 inches
- Diameter: 1.1 inches
- Lifespan: 25,000 hours
- Dimmable: No
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed
- Environmental: RoHS Compliant
- Warranty: 5-year limited warranty:contentReference[oaicite:9]{index=9}
Downloads
