Description
13W/18W/26W LED Compact Fluorescent Retrofit | Ballast Bypass | 120-277V | G24d/GX24d/G24q/GX24q Base | Cool White

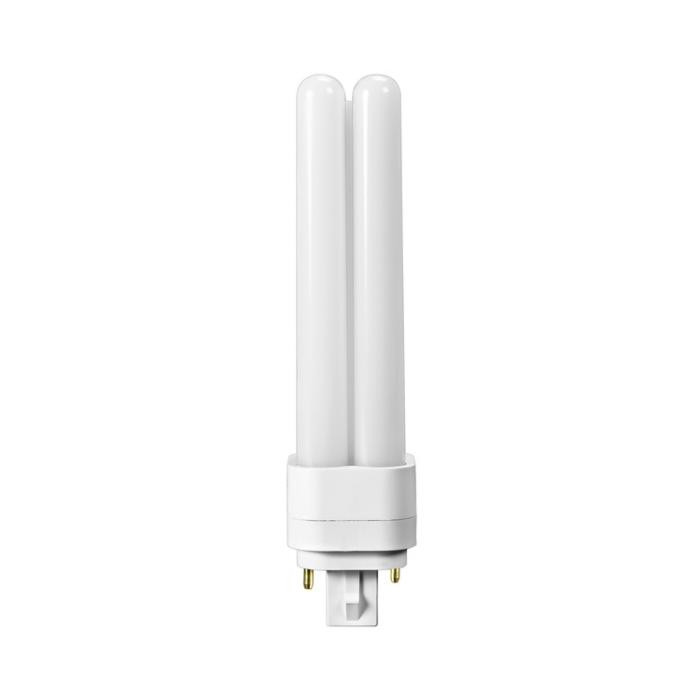

TCP LPL218B2541K is an 8W Type B LED PL CFL replacement lamp designed for compatible commercial downlights, recessed fixtures, sconces, track lights, display lights, and general lighting applications. This non-dimmable ballast bypass lamp replaces 13W, 18W, and 26W CFL PL lamps, operates on 120-277V, delivers 1050 lumens, produces 4100K cool white light, and supports G24d, GX24d, G24q, and GX24q base compatibility after the existing ballast is bypassed.
Product Specifications
- Brand: TCP
- Model Number: LPL218B2541K
- Lamp Type: LED PL CFL replacement lamp
- Installation Type: Type B ballast bypass
- Shape: 2U
- Wattage: 8W
- CFL Watt Equivalent: 13W / 18W / 26W
- Lumen Output: 1050 lumens
- Efficacy: 131.3 LPW
- Color Temperature: 4100K
- Color Description: Cool White
- Voltage: 120-277V
- Input Line Frequency: 50/60 Hz
- Dimmable: No
- CRI: 80
- Rated Life: 25,000 hours
- Maximum Overall Length: 5.7"
- Diameter: 1.1"
- Base Type: G24d / GX24d / G24q / GX24q
- Location Rating: Dry and damp locations
- Enclosed Fixture Use: Approved for enclosed fixtures with minimum lamp compartment size of 8" diameter x 11" height
- Minimum Starting Temperature: -22C
- Maximum Operating Temperature: 40C
- Case Quantity: 12
- Warranty: 5 years
Benefits
- Replaces 13W, 18W, and 26W CFL PL lamps while using only 8W.
- Type B ballast bypass installation helps eliminate ballast compatibility issues.
- Built-in 120-277V driver supports multi-volt retrofit applications.
- 1050 lumen output provides efficient illumination for commercial PL lamp replacements.
- G24d, GX24d, G24q, and GX24q base compatibility helps cover common 2-pin and 4-pin PL sockets.
- 4100K cool white light provides clean, neutral illumination for offices, retail, hospitality, and general lighting.
- Suitable for dry and damp locations when installed in compatible fixtures.
- Approved for enclosed fixtures when minimum lamp compartment size requirements are met.
Applications
- Commercial downlights
- Recessed downlights
- Track lighting
- Display lighting
- Sconces
- Retail lighting
- Office lighting
- Hospitality lighting
- General lighting
