Description

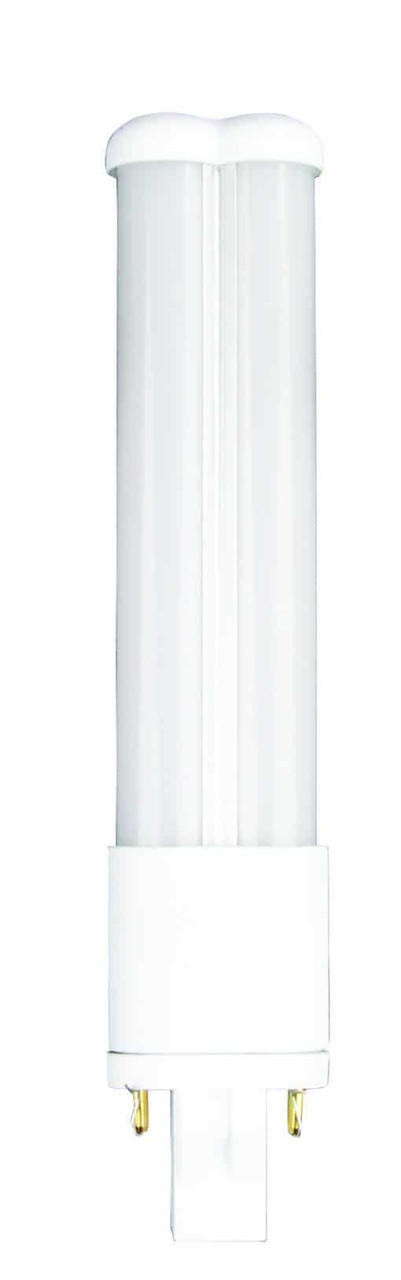

Energy-Saving 1U LED PL Retrofit Lamp | Warm White 2700 K | GX23 Base | Type B Ballast Bypass Installation
The TCP LPLU09B2527K offers a simple upgrade from CFL plug-in lamps with a warm, inviting 2700K glow. This 5W Type B LED retrofit bypasses the ballast entirely, reducing compatibility issues while boosting efficiency. Perfect for hospitality, residential, and office spaces, it provides reliable light with fewer replacements required.:contentReference[oaicite:2]{index=2}
KEY FEATURES:
- Simple Upgrade: Ballast bypass installation eliminates compatibility issues and improves system efficiency.:contentReference[oaicite:3]{index=3}
- Energy Efficient: Consumes just 5W while replacing 5–9W CFL lamps, lowering energy costs immediately.:contentReference[oaicite:4]{index=4}
- Warm Ambience: 2700K color temperature delivers soft, comfortable light for residential and hospitality environments.:contentReference[oaicite:5]{index=5}
- Compact Fit: GX23 base design ensures easy installation in existing fixtures.:contentReference[oaicite:6]{index=6}
- Long Life: Rated for 25,000 hours with a 5-year warranty, reducing maintenance demands.:contentReference[oaicite:7]{index=7}
APPLICATIONS:
- Ideal for recessed downlights in hotels, restaurants, and residential living spaces.
- Great for sconces in hallways and hospitality guest rooms.
- Best used in GX23 socket fixtures where warm, comfortable lighting is preferred.:contentReference[oaicite:8]{index=8}
SPECIFICATIONS:
- Wattage: 5W
- Lumens: 500
- Efficacy: 100 LPW
- Color Temperature: 2700K
- CRI: 80
- Voltage: 120-277V
- Base Type: GX23
- CFL Wattage Equivalent: 5–9W
- MOL: 6.5 inches
- Diameter: 1.3 inches
- Lifespan: 25,000 hours
- Dimmable: No
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed
- Environmental: RoHS Compliant
- Warranty: 5-year limited warranty:contentReference[oaicite:9]{index=9}
