Description

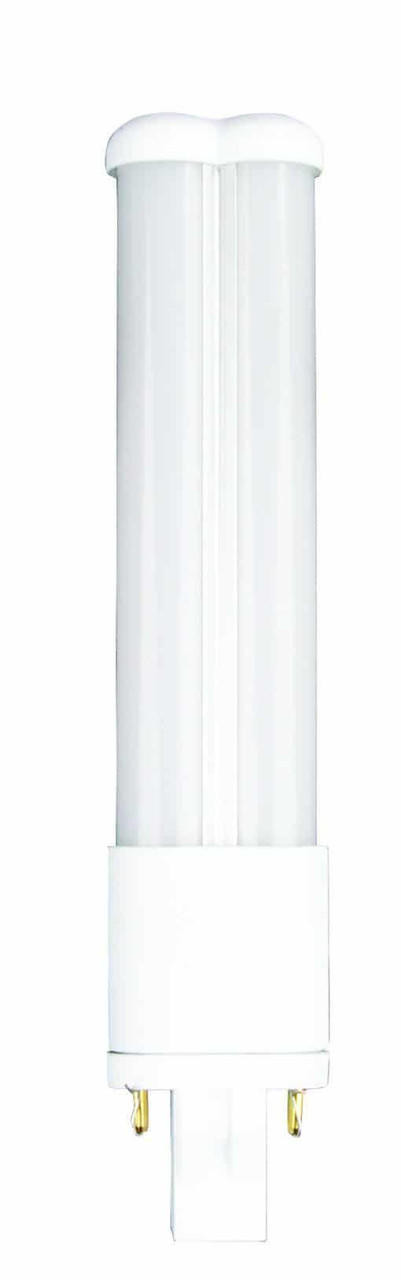

Compact 1U LED PL Retrofit Lamp | Neutral White 3500 K | GX23 Base | Type B Ballast Bypass Installation
The TCP LPLU09B2535K offers a neutral white 3500K output, making it a perfect solution for offices, hospitality, and retail spaces. Its 5W design replaces older CFLs while bypassing the ballast for higher efficiency and fewer compatibility issues. The GX23 base allows for a quick retrofit in compact fixtures, providing energy savings and reduced maintenance.:contentReference[oaicite:2]{index=2}
KEY FEATURES:
- Ballast-Free Retrofit: Type B bypass installation eliminates ballast failures and increases efficiency.:contentReference[oaicite:3]{index=3}
- Energy Efficient: Operates at only 5W, replacing 5–9W CFL lamps for instant savings.:contentReference[oaicite:4]{index=4}
- Balanced Light: Neutral white 3500K tone creates a clean, professional lighting environment.:contentReference[oaicite:5]{index=5}
- Compact Design: Slim 1U form factor with GX23 base ensures easy installation in small fixtures.:contentReference[oaicite:6]{index=6}
- Extended Reliability: 25,000-hour rated life with 5-year warranty reduces maintenance cycles.:contentReference[oaicite:7]{index=7}
APPLICATIONS:
- Perfect for recessed downlights in office and hospitality settings.
- Suitable for retail displays requiring clean, neutral white light.
- Best used in GX23 socket fixtures where ballast bypass upgrades are desired.:contentReference[oaicite:8]{index=8}
SPECIFICATIONS:
- Wattage: 5W
- Lumens: 550
- Efficacy: 110 LPW
- Color Temperature: 3500K
- CRI: 80
- Voltage: 120-277V
- Base Type: GX23
- CFL Wattage Equivalent: 5–9W
- MOL: 6.5 inches
- Diameter: 1.3 inches
- Lifespan: 25,000 hours
- Dimmable: No
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed
- Environmental: RoHS Compliant
- Warranty: 5-year limited warranty:contentReference[oaicite:9]{index=9}
