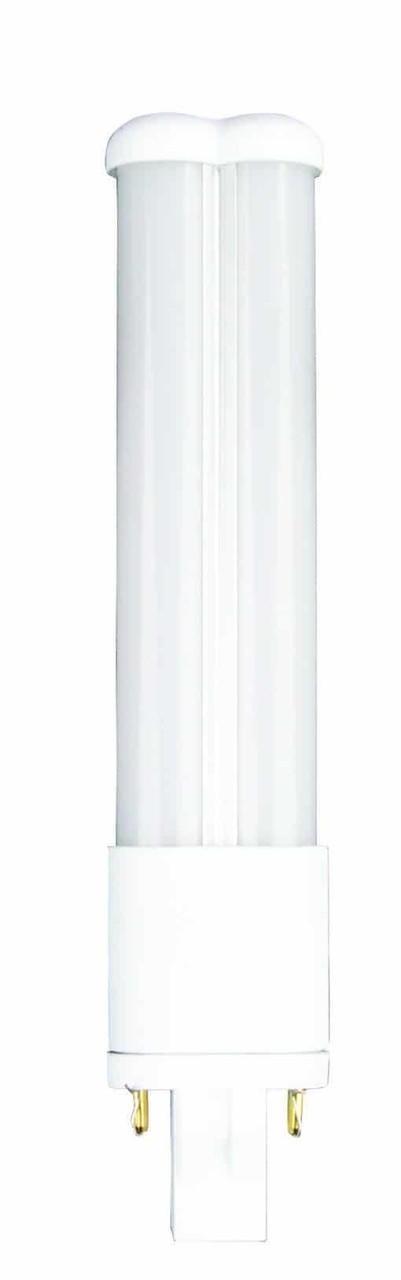

Compact 1U LED PL Retrofit Lamp | Warm White 2700 K | GX23 Base | Type B Ballast Bypass Installation
The TCP LPLU13B2527K delivers a soft 2700K warm white glow, making it ideal for hospitality, residential, and office lighting upgrades. At only 7 watts, it replaces CFL lamps while bypassing the ballast for enhanced efficiency and reliability. Its GX23 base ensures a simple retrofit in compact fixtures, reducing maintenance costs while creating comfortable environments.:contentReference[oaicite:2]{index=2}
KEY FEATURES:
- Ballast-Free Retrofit: Type B bypass design eliminates ballast issues for greater system reliability.:contentReference[oaicite:3]{index=3}
- Energy Efficient: Uses just 7W while replacing 9–13W CFLs, lowering energy costs.:contentReference[oaicite:4]{index=4}
- Warm White Light: 2700K glow provides inviting, comfortable illumination for living and hospitality spaces.:contentReference[oaicite:5]{index=5}
- Compact Size: Slim 1U design and GX23 base ensure easy retrofits in existing fixtures.:contentReference[oaicite:6]{index=6}
- Durable Build: Rated for 25,000 hours with a 5-year warranty, reducing replacement cycles.:contentReference[oaicite:7]{index=7}
APPLICATIONS:
- Ideal for hospitality lighting in hotels and restaurants.
- Perfect for residential downlights requiring warm, soft lighting.
- Best used in GX23 socket fixtures for ballast-free retrofits.:contentReference[oaicite:8]{index=8}
SPECIFICATIONS:
- Wattage: 7W
- Lumens: 700
- Efficacy: 100 LPW
- Color Temperature: 2700K
- CRI: 80
- Voltage: 120-277V
- Base Type: GX23
- CFL Wattage Equivalent: 9–13W
- MOL: 6.5 inches
- Diameter: 1.3 inches
- Lifespan: 25,000 hours
- Dimmable: No
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed
- Environmental: RoHS Compliant
- Warranty: 5-year limited warranty:contentReference[oaicite:9]{index=9}
