Description

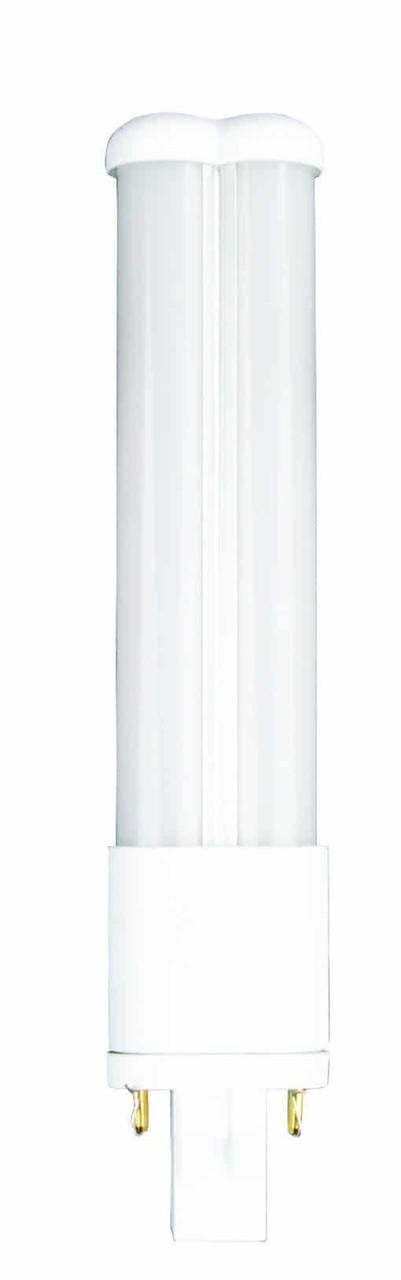

Compact 1U LED PL Retrofit Lamp | Soft White 3000 K | GX23 Base | Type B Ballast Bypass Installation
The TCP LPLU13B2530K provides a soft 3000K glow, making it ideal for office, hospitality, and residential spaces. Operating at only 7 watts, this LED retrofit bypasses the ballast for greater efficiency and eliminates ballast-related failures. The GX23 base allows for simple retrofits in compact fixtures, cutting maintenance time and costs while delivering long-term reliability.:contentReference[oaicite:2]{index=2}
KEY FEATURES:
- Ballast Bypass Retrofit: Type B installation avoids ballast issues and improves overall system efficiency.:contentReference[oaicite:3]{index=3}
- Energy Efficient: Operates at 7W while replacing 9–13W CFL lamps, reducing energy expenses.:contentReference[oaicite:4]{index=4}
- Soft White Light: 3000K output delivers warm, comfortable lighting for professional and hospitality settings.:contentReference[oaicite:5]{index=5}
- Compact Build: Slim 1U design and GX23 base ensure compatibility with small fixture housings.:contentReference[oaicite:6]{index=6}
- Reliable Performance: 25,000-hour life rating with 5-year warranty minimizes replacement needs.:contentReference[oaicite:7]{index=7}
APPLICATIONS:
- Residential sconces and downlights requiring soft white light.
- Hospitality environments like hotels and restaurants.
- Best used in GX23 socket fixtures for ballast-free retrofits.:contentReference[oaicite:8]{index=8}
SPECIFICATIONS:
- Wattage: 7W
- Lumens: 750
- Efficacy: 107.1 LPW
- Color Temperature: 3000K
- CRI: 80
- Voltage: 120-277V
- Base Type: GX23
- CFL Wattage Equivalent: 9–13W
- MOL: 6.5 inches
- Diameter: 1.3 inches
- Lifespan: 25,000 hours
- Dimmable: No
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed
- Environmental: RoHS Compliant
- Warranty: 5-year limited warranty:contentReference[oaicite:9]{index=9}
