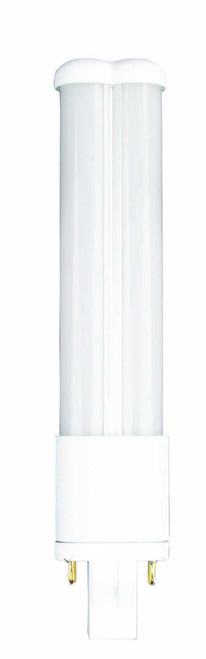

Compact 1U LED PL Retrofit Lamp | Cool White 4100 K | GX23 Base | Type B Ballast Bypass Installation
The TCP LPLU13B2541K offers a crisp 4100K cool white light, ideal for commercial, retail, and office lighting applications. Operating at just 7 watts, this lamp bypasses the ballast for greater efficiency and avoids compatibility issues. Its GX23 base makes retrofits quick and easy while reducing maintenance demands over time.:contentReference[oaicite:2]{index=2}
KEY FEATURES:
- Ballast-Free Retrofit: Type B bypass design eliminates ballast failures and increases efficiency.:contentReference[oaicite:3]{index=3}
- Energy Saving: Runs at 7W while replacing 9–13W CFL lamps, lowering power use.:contentReference[oaicite:4]{index=4}
- Cool White Output: 4100K light creates a bright, professional atmosphere for work environments.:contentReference[oaicite:5]{index=5}
- Compact Design: Slim 1U form factor and GX23 base ensure compatibility with tight fixtures.:contentReference[oaicite:6]{index=6}
- Reliable Lifespan: Rated for 25,000 hours with a 5-year warranty for lasting performance.:contentReference[oaicite:7]{index=7}
APPLICATIONS:
- Office downlights requiring neutral, bright illumination.
- Retail fixtures needing reliable cool white light.
- Best suited for GX23 socket fixtures where ballast bypass is preferred.:contentReference[oaicite:8]{index=8}
SPECIFICATIONS:
- Wattage: 7W
- Lumens: 750
- Efficacy: 107.1 LPW
- Color Temperature: 4100K
- CRI: 80
- Voltage: 120-277V
- Base Type: GX23
- CFL Wattage Equivalent: 9–13W
- MOL: 6.5 inches
- Diameter: 1.3 inches
- Lifespan: 25,000 hours
- Dimmable: No
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed
- Environmental: RoHS Compliant
- Warranty: 5-year limited warranty:contentReference[oaicite:9]{index=9}
