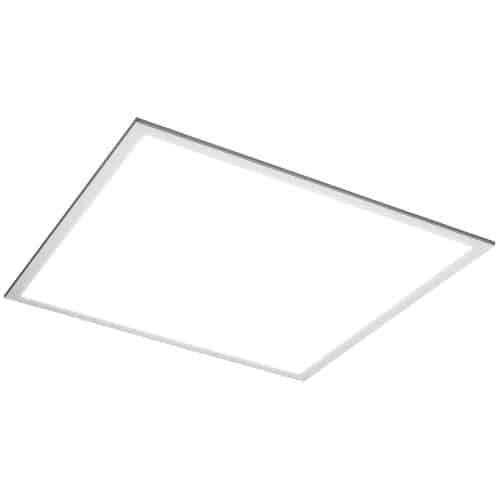

TCP PLP2UZDA141K LED Pro Line Panel | Neutral White 4100K Illumination | Wattage Selectable 2x2 Fixture for Offices and Schools
The TCP PLP2UZDA141K LED Pro Line Panel is an energy-efficient replacement for outdated fluorescent troffers, offering reliable illumination with a slim, low-profile design. Using back-lit technology, it delivers full-panel diffusion and consistent light output while reducing maintenance needs. This panel is engineered for T-bar grid ceilings, making it ideal for commercial and institutional spaces seeking better lighting quality and long-term energy savings.
KEY FEATURES:
- Selectable Power: Adjustable between 38W, 29W, and 23W for flexible energy use.
- Bright Output: Delivers 4,200 lumens of neutral white 4100K light with excellent color consistency.
- Efficient Design: Back-lit technology provides uniform illumination across the entire panel surface.
- Glare Control: Frosted diffuser ensures reduced glare for comfortable environments.
- Reliable Longevity: Rated for 50,000 hours to minimize replacement and maintenance costs.
- Quick Install: Lightweight frame and grid clips make installation simple and fast.
APPLICATIONS:
- Perfect for offices seeking modern, flicker-free illumination.
- Ideal for classrooms and educational facilities upgrading from fluorescent lighting.
- Best used in retail and healthcare ceilings with 2x2 T-bar grid layouts.
SPECIFICATIONS:
- Wattage: 38W (Selectable to 29W/23W)
- Lumens: 4,200
- Color Temperature: 4100K
- CRI: >80
- Voltage: 120-277V
- Efficacy: >110 LPW
- Lifespan: 50,000 hours
- Dimmable: 0-10V
- Operating Temperature: -20°C to 40°C
- Beam Angle: 120°
- Dimensions: 23.7" x 23.7" x 1.67"
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed
- Compliance: RoHS Compliant
- DLC: DLC 5.1 Standard
- Warranty: 5-year limited warranty
