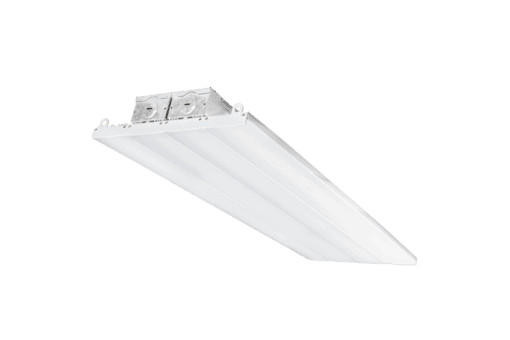

TCP QHB2UZDA450K Industrial LED High Bay Fixture | Neutral White 4000K Illumination | High Output Lighting for Warehouses
The TCP QHB2UZDA450K LED High Bay is designed to deliver powerful illumination for large commercial and industrial spaces. Replacing outdated 400W HID fixtures, it ensures bright, even light distribution with reduced glare, lower energy use, and long-lasting reliability. Its durable extruded aluminum body and quick-install hardware make it a trusted choice for demanding high-ceiling environments.
KEY FEATURES:
- High Performance: Produces 30,500 lumens of neutral white light for expansive area coverage.
- Energy Savings: Efficiently replaces traditional 400W HID systems with significantly lower consumption.
- Smooth Dimming: 0-10V dimming capability provides flexible light levels to suit varying tasks.
- Durability: Lightweight aluminum housing with frosted lens for glare control and consistent illumination.
- Long Life: Rated for 50,000 hours, reducing maintenance and replacement needs.
- Quick Installation: Includes 6-foot pre-wired cord, jack chains, and hangers for faster setup.
APPLICATIONS:
- Warehouses and distribution centers requiring bright, high-output lighting.
- Manufacturing facilities where reliable illumination reduces operational downtime.
- Commercial retail spaces with high ceilings, ensuring consistent visibility throughout.
SPECIFICATIONS:
- Wattage: 220W
- Lumens: 30,500
- Color Temperature: 4000K
- Voltage: 120-277V
- Lifespan: 50,000 hours
- Dimmable: 0-10V
- Operating Temperature: -4°F to 122°F
- Beam Angle: 160° wide spread
- Dimensions: 23.8" L x 6.8" W x 2.6" H
- Weight: 7.61 lbs
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed
- Compliance: RoHS Compliant
- DLC: DLC 5.1 Standard
- Warranty: 5-year limited warranty
