Description

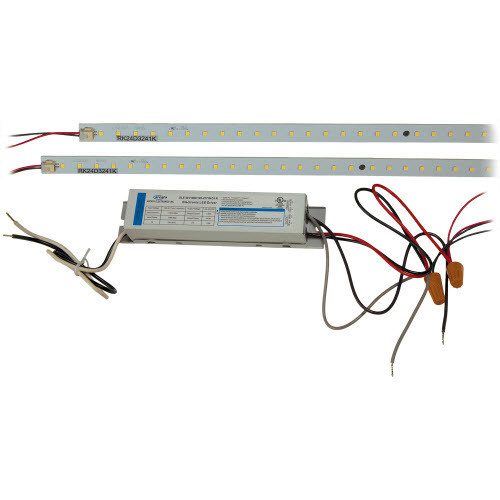

Magnetic LED Retrofit Kit For 3-Foot Troffers | CCT Selectable | Selectable Wattage For Fast, Energy-Saving Retrofits
Upgrade existing fluorescent troffers quickly with a magnetic retrofit solution that delivers on-site CCT tuning and selectable wattage to reduce energy use and simplify maintenance during phased installations.
KEY FEATURES:
- On-Site CCT Selection: Choose 3500K, 4100K or 5000K to match existing lighting or standardize across spaces.
- Selectable Wattage: Field-selectable 18W / 25W / 30W options allow lumen output tailoring for different room needs.
- Magnetic Mount: Fast, tool-minimal installation into existing strip and troffer housings for reduced labor time.
- Integrated Dimming: Includes a 0-10V dimming driver for smooth dimming and energy savings when paired with controls.
- High Efficacy: Up to 150 lumens per watt for strong performance and potential utility rebates.
APPLICATIONS:
- Office troffers and general office spaces
- Warehouses, storage areas and manufacturing support zones
- Retail back-of-house, corridors and service areas
- Tip: Use CCT selection to harmonize color with adjacent fixtures during phased upgrades.
SPECIFICATIONS:
- Form Factor: 3-Foot LED Troffer Retrofit Kit
- Length: 32"
- Color: CCT Selectable (3500K / 4100K / 5000K)
- Wattage: Selectable (18W / 25W / 30W)
- Lumens: 2800 / 3700 / 4600 (per ordering matrix for SW2)
- Voltage: 120-277V
- Dimming: 0-10V Dimming Driver
- Life Hours: 50000
- Warranty: Five year limited warranty
- Options On This SKU: 120-277V (U); 0-10V Dimming (ZD); SW2 (18/25/30W); CCT Selectable
Downloads
Disclaimers
*Typically ships within 2-3 business days. Lead times are estimates and may vary based on quantity and availability.
