Description

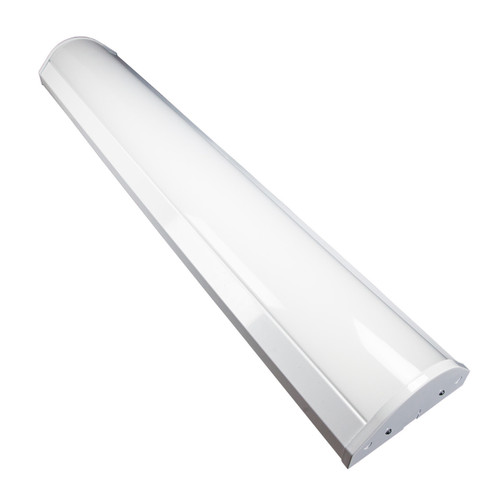

Low-Profile 4-Foot Select Series Stair Lighter for Commercial Stairwells | CCT Selectable | Built-In Microwave Sensor
Upgrade stairwell lighting with a durable, contractor-friendly Select Series fixture from TCP that reduces maintenance and energy use. This 4-foot luminaire delivers selectable color temperature and efficient performance with a built-in microwave motion sensor to help lower runtime and meet code-driven safety requirements.
KEY FEATURES:
- On-Site Tuning: Color selectable 3500K/4000K/5000K simplifies specification and harmonizes with existing lighting.
- Occupancy Savings: Built-in Sharkward bi-level microwave motion sensor reduces energy use in low-traffic stairwells.
- Selectable Output: High-output selectable wattage options optimize lumens for task and egress lighting.
- Optional Add-On: Factory-available battery backup for emergency egress illumination (order separately).
- Contractor-Friendly: Lightweight aluminum housing and simple surface or pendant mounting speed installations.
APPLICATIONS:
- Stairwells, corridors, and vertical circulation spaces
- Commercial buildings and facility support areas
- Warehouses and industrial stair enclosures
- Tip: Use CCT selection to match adjacent fixtures during phased upgrades.
SPECIFICATIONS:
- Form Factor: 4-Foot LED General Purpose Strip (Select Series Stair Lighter)
- Color: CCT Selectable (3500K / 4000K / 5000K)
- Wattage: 55 W (selectable 35/45/55 W)
- Lumens: 7200 (AUTH_ROW value)
- Voltage: 120-277V
- Controls: 0-10V Dimming (standard)
- Rated Life: 50,000 hours
- CRI: >80
- Lumens Per Watt: 135 LPW (per spec)
- Ratings: cULus Listed; Damp Location Rated
- Height: 4.5
- Width: 8.8
- Options On This SKU: Built-In Sharkward Bi-Level Microwave Motion Sensor
Downloads
Disclaimers
*Typically ships within 2-3 business days. Lead times are estimates and may vary based on quantity and availability.
