Description

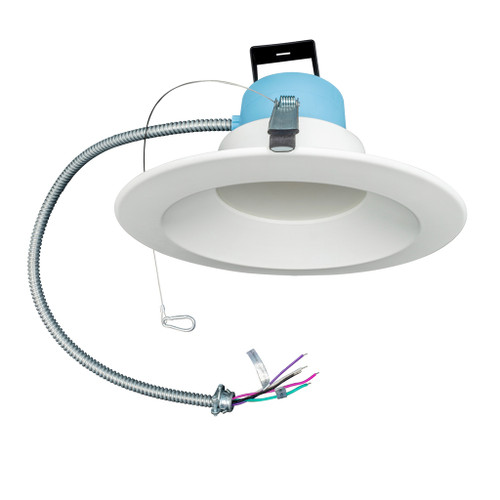

Canless 10in Commercial Downlight | Field-Selectable Power And Color Controls For Offices, Retail And Hospitality
Designed for fast, low-maintenance commercial installs, this canless 10" downlight eliminates the need for housing while delivering flexible performance. Field-selectable power and color options let contractors and facility managers dial in lumen output and tone on site, while the integrated driver and 0-10V dimming simplify wiring and commissioning for retail, hospitality, and office projects.
KEY FEATURES:
- Canless Installation: No housing required-spring clips and quick-connects speed retrofit and new construction installs.
- Field Adjustable Output: Selectable wattages (15W/20W/25W) provide tailored lumen levels to meet space requirements and save energy.
- Adjustable Color Tone: Five selectable color temperatures for consistent appearance across rooms and tenant spaces.
- Low Glare Optics: Deep regressed design with a wide 95° distribution for comfortable, even illumination in public areas.
- Integrated Controls: Built-in driver with 0-10V dimming for smooth dimming performance and compatibility with standard control systems.
- Durable And Serviceable: Rated for Wet Locations and backed by a 5-year warranty for reliable long-term operation.
APPLICATIONS:
- Ideal for hospitality common areas, hotel corridors, and restaurant dining rooms.
- Well-suited for retail aisles, convenience stores, and multi-tenant commercial spaces.
- Perfect for office suites, lobbies, and multi-family residential common areas.
- Installation Tip: Use the supplied cutout template and spring clips for consistent alignment and fast, secure mounting.
SPECIFICATIONS:
- Product Code: CDL10S-36WPCS-U
- Topaz by Halco SKU: T75868
- Wattage: Selectable 15W, 20W or 25W
- Lumens: 1,550 - 2,000 - 2,500 lm
- Color Temperature: Selectable 2700K, 3000K, 3500K, 4000K, 5000K
- CRI: 90
- Voltage: 120-277V
- Dimmable: Yes (0-10V)
- Size / Shape: 10in Round
- Beam Angle: 95 Degrees
- Average Life: 50,000 hrs
- Power Factor: 0.9
- Operating Temperature: -25C to 40C (-13F to 104F)
- Finish: White
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: ETL Listed, Energy Star, RoHS, JA8, Title 24
- Location Rating: Wet Location
- Controls & Options: Emergency battery backup available (sold separately with remote test switch option)
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than the stated lead-time. All lead-times are estimates, and you will be notified by email if it will take longer than 5 business days to ship. Halco products ship directly from the manufacturer and require a combined minimum purchase of $150 in Halco merchandise. Multiple Halco items may be combined to meet the minimum.
