Description

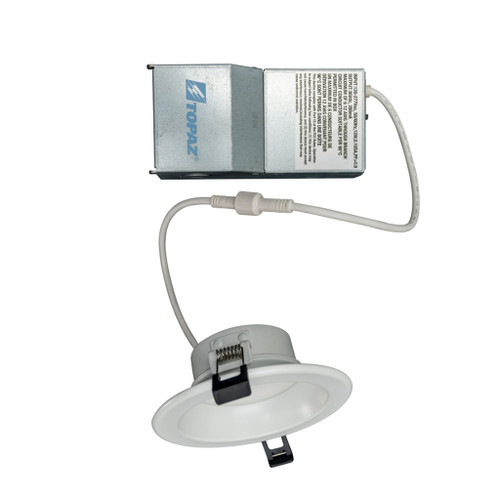

Canless 4in Downlight | CCT Selectable With Field Power And 0-10V Dimming For Offices And Retail
This canless 4" downlight simplifies commercial installations by eliminating housings while offering field-selectable wattage and color temperatures for tailored lighting. The remote driver and 0-10V dimming provide flexible control options, making it ideal for fast retrofits and new construction in offices, retail, and hospitality environments.
KEY FEATURES:
- Field Adjustable: Power and CCT switches let installers select 6W/9W/13W and five color tones on site.
- Canless Design: Installs without a separate housing for faster, lower-cost ceiling installs.
- Remote Driver: Remote-mounted driver with control switches for simplified access and serviceability.
- Low Glare Optics: Deep regressed design provides comfortable illumination with a 90° beam angle.
- Wet Location Rated: Suitable for damp and wet applications per listing.
APPLICATIONS:
- Hospitality spaces such as hotel corridors and lobbies.
- Retail and convenience stores requiring flexible, low-glare lighting.
- Multi-family and residential common areas seeking compact recessed solutions.
- Installation Tip: Use the included cutout template and spring clips for quick, secure mounting in insulated or non-insulated ceilings.
SPECIFICATIONS:
- Product Code: CDL4S-RM-12WPCS-U
- Topaz by Halco SKU: T75869
- Wattage: Selectable 6W, 9W, 13W
- Lumens: 630 / 900 / 1,100 lm
- Color Temperature: CCT Selectable (2700K, 3000K, 3500K, 4000K, 5000K)
- CRI: 90
- Dimmable: Yes (0-10V)
- Voltage: 120-277V
- Input Frequency: 50/60Hz
- Beam Angle: 90 Degrees
- Size: 4in
- Average Life: 50,000 hours
- Power Factor: 0.9
- Finish: White
- Warranty: 5 years
- Manufacturer/Brand: Topaz (Halco SKU T75869)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: ETL Listed, Energy Star Certified
- Location Rating: Wet Location
- Regulatory: Title 24, JA8, RoHS
- Emergency: Emergency battery backup available (remote-mounted test switch) as an option
