Description

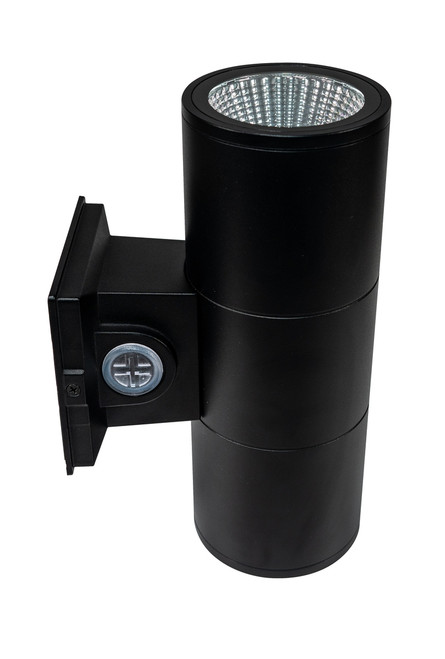

4-Inch Wall Cylinder For Indoor/Outdoor Use | CCT Selectable With Dusk-To-Dawn Control For Hospitality, Retail And Residential
Modernize exterior and interior facades with a compact, low-maintenance wall cylinder that delivers selectable light output and color to match aesthetics and operational needs. The TX4022 simplifies projects with power and CCT selection, integrated dusk-to-dawn control, and a rugged IP65 housing for reliable performance in hotels, restaurants, retail, and multifamily properties.
KEY FEATURES:
- Power Selectable: Choose 12W, 16W, or 20W to balance brightness and energy use for each location.
- CCT Flexibility: Field-selectable 2700K, 3000K, 3500K, 4000K or 5000K to match site color requirements.
- Integrated Dusk-to-Dawn: Built-in on/off dusk-to-dawn control for automated outdoor operation and reduced maintenance.
- Durable Construction: Black die-cast aluminum housing with UV-resistant tempered glass lens (IK04) for wet locations.
- Dim Capable: 0-10V dimming support for zoning and energy savings.
APPLICATIONS:
- Ideal for hotel and hospitality entrances and walkways.
- Perfect for restaurant and retail storefront accent and security lighting.
- Well suited for residential and multi-family building exteriors.
- Usage Tip: Use lower watt/CCT settings near entrances for welcoming ambiance and higher settings for security zones.
SPECIFICATIONS:
- Product Code: CLW-20PCS-BK
- Topaz by Halco SKU: TX4022
- Wattage: Selectable 12W / 16W / 20W
- Lumens: 1,140 / 1,520 / 1,900 lm
- Color Temperature: Selectable 2700K, 3000K, 3500K, 4000K, 5000K
- CRI: 90
- Beam Angle: 40°
- Dimmable: Yes (0-10V)
- Voltage: 120-277V
- Average Life: 54,000 hours
- Size: 4 in
- IP Rating / Environment: IP65, Wet Location
- Power Factor: 0.9
- Operating Temp: -40°C to 45°C (-40°F to 113°F)
- Mount: Wall Mount Included
- Finish: Black
- Housing Material: Aluminum
- Lens: Tempered Glass (UV Resistant, IK04)
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Listed; UL Listed; RoHS Compliant
- Location Rating: Suitable For Wet Locations (IP65)
