Description
Commercial Linear High Bay Fixture | Cool White 4000K Lighting For Warehouses, Gyms, And Big-Box Retail

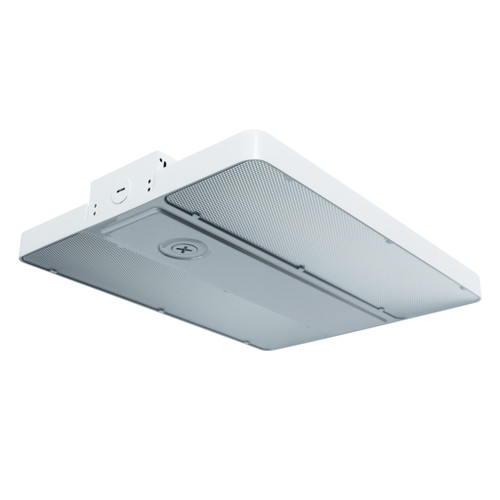

Designed for high-ceiling commercial and industrial spaces, this Halco linear high bay delivers bright, consistent illumination while reducing maintenance and energy costs. The die-cast aluminum housing and center driver enclosure optimize thermal performance, and the diffused lens provides comfortable, wide-area light ideal for warehouses, big-box retail, and gymnasiums.
KEY FEATURES:
- High Output: 18,000 lumens of powerful LED light at a 120W draw for efficient area illumination.
- Durable Construction: Die-cast aluminum body with center driver housing for improved thermal control and longevity.
- Visual Comfort: Diffused lens delivering a 90° wide beam with minimal glare.
- Control Ready: Integrated sensor socket supports low-voltage controls; standalone or Bluetooth sensors sold separately.
- Flexible Mounting: Suspension mount ready with V-hook and chain included for quick installation.
- Surge Protection: Built-in 6kV surge protection and 1/2" knockout for controls or wiring.
- Dimming: 0-10V dimmable driver for smooth light-level control.
APPLICATIONS:
- Ideal for high-ceiling warehouses and distribution centers.
- Well suited to big-box retail and manufacturing facilities.
- Appropriate for gymnasiums and recreational centers needing uniform overhead lighting.
- Installation Tip: For dimming with a sensor, use a hardwired OS-PIR-UNV 120-227V sensor as specified by Halco.
SPECIFICATIONS:
- Product Code: LHB-18L-W-40K-U
- Topaz by Halco SKU: T75830
- Wattage: 120W
- Lumens: 18,000 lm
- Color Temperature: 4000K
- CRI: 80
- Voltage: 120-277V
- Dimmable: Yes (0-10V)
- Average Life: 50,000 hrs
- Warranty: 5 years
- Power Factor: 0.9
- Environment Rating: Damp Location
- Mount Included: V-Hook and Chain
- Weight: 5.95
- Dimensions (L×W×H): 14.2 × 11.81 × 3.35
CERTIFICATIONS & ADDITIONAL NOTES:
- Qualification: DLC 5.1 Premium
- Safety Listings: UL Listed, RoHS compliant
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than the stated lead-time. All lead-times are estimates, and you will be notified by email if it will take longer than 5 business days to ship. Halco products ship directly from the manufacturer and require a combined minimum purchase of $150 in Halco merchandise. Multiple Halco items may be combined to meet the minimum.
