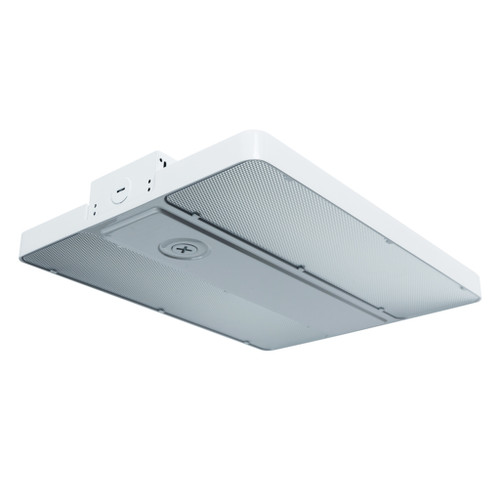

Commercial Linear High Bay Fixture | Daylight For Warehouses, Gyms And Manufacturing With Sensor-Ready Driver
Upgrade high-ceiling commercial spaces with a durable, high-output LED solution that simplifies installation and reduces maintenance. The Topaz LHB-18L-W-50K-U linear high bay produces 18,000 lumens at 120W, is sensor-ready for modern lighting controls, and runs on wide-range 120-277V power for fast deployment in warehouses, big-box retail, and industrial facilities.
KEY FEATURES:
- High Output: 18,000 lumens of Daylight illumination for high-ceiling environments.
- Robust Construction: Die-cast aluminum body with center driver housing for thermal control and long life.
- Sensor-Ready: Integrated socket supports low-voltage control devices; standalone sensors and Bluetooth options sold separately.
- Optical Comfort: Diffused lens with 90° wide beam minimizes glare and improves visual comfort.
- Mounting Flexibility: Suspension mount ready with V-hook and chain included; surface and pendant mounts sold separately.
- Surge & Wiring Prep: 6 kV surge protection and 1/2" knockout for controls or wiring.
- Dimmable: 0-10V dimming capable for energy savings and scene control.
APPLICATIONS:
- Ideal for warehouses and distribution centers seeking high-output, low-maintenance lighting.
- Perfect for big-box retail and gymnasiums where uniform, bright illumination is required.
- Well-suited for manufacturing and industrial facilities with high ceilings and robust mounting needs.
- Installation Tip: For dimming with an integrated sensor, use the hardwired OS-PIR-UNV (120-277V) sensor per Halco guidance.
SPECIFICATIONS:
- Product Code: LHB-18L-W-50K-U
- Topaz by Halco SKU: T75831
- Wattage: 120W
- Lumens: 18,000 lm
- Color Temperature: 5000K (Daylight)
- CRI: 80
- Voltage: 120-277V
- Dimmable: Yes (0-10V)
- Average Life: 50,000 hrs
- Power Factor: 0.9
- Warranty: 5 years
- Mount Included: Yes (V-Hook and Chain)
- Environment Rating: Damp Location
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium, UL Listed, RoHS Compliant
- Surge Protection: 6 kV
