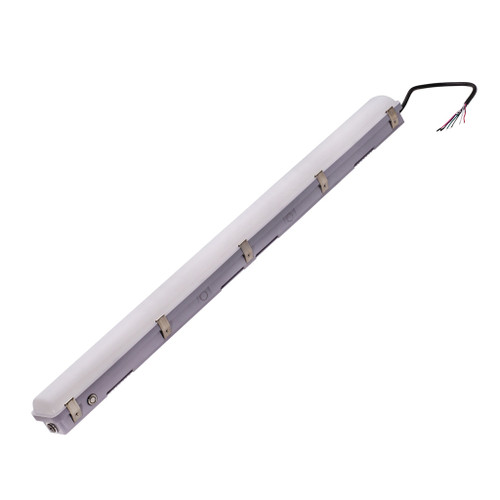

4ft IP66 Wet-Rated Vaportight With Microwave Motion Sensor | 30-50W Selectable Output For Industrial Use
Designed for harsh, wet environments, this 4ft linear vaportight delivers flexible lumen and color options while reducing energy and maintenance costs. The factory-installed microwave motion sensor plus selectable wattage and color temperature provide dependable, task-tailored illumination for industrial and commercial spaces.
KEY FEATURES:
- Integrated Motion Sensor: Factory-installed microwave sensor enables occupancy-based energy savings and automated control.
- Wattage & Color Selectable: Choose 30W, 40W or 50W and 3500K/4000K/5000K at installation to match application needs.
- Robust Construction: Wet-location rated with IP65/IP66 design intent, IK09 impact rating and NEMA 4X housing for demanding environments.
- Durable Materials: UL 5VA flame-rated polycarbonate lens and stainless-steel latching clips for tool-less access and long service life.
- Flexible Installation: 1/2in NPT threaded hubs for conduit or cord entry; surface mount bracket included for quick setup.
- Dimmable Control: 0-10V dimming support for task-tuning and additional energy savings.
APPLICATIONS:
- Manufacturing and production areas needing robust, continuous lighting.
- Parking garages, stairwells, and subway stations for motion-activated illumination.
- Food service splash zones (ETL Sanitation Listed; not for direct food contact).
- Usage Tip: Combine 0-10V dimming with the motion sensor to maximize energy savings during low-traffic periods.
SPECIFICATIONS:
- Product Code: LVT4-50PCS-MS
- Topaz by Halco SKU: T73817
- Wattage: Selectable 30W, 40W, 50W
- Lumens: 4,300 / 5,800 / 7,250 lm
- Color Temperature: Selectable 3500K, 4000K or 5000K
- CRI: 80
- Voltage: 120-277V
- Dimmable: Yes (0-10V)
- Average Life: 50,000 hrs
- Warranty: 5 years
- Input Frequency: 50/60Hz
- Power Factor: 0.9
- Size: 4 ft
- Weight: 7.2
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: ETL Listed; DLC 5.1 Listed; ETL Sanitation NSF/ANSI Standard 2 (Splash Zone, Not for Direct Food Zone)
- Environment Rating: IP65 / IP66 Wet Location; NEMA 4X; IK09 Impact Rated
- Market: Commercial, Industrial
