Description
2x2 Square LED Flat Panel with Emergency Battery Backup | 30W and 4000K

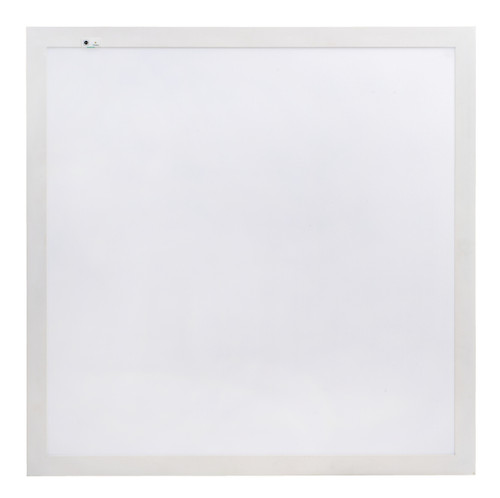

The Topaz PL22-30W-40K-D-EM is a 2x2 LED flat panel with a built-in emergency battery backup that keeps it lit during a power outage. It delivers 30W at 4000K. It is designed for 2x2 drop ceiling grids.
Features
- Lightweight Design: Up to 25% lighter than traditional fixtures for easier handling and faster installs.
- Uniform Illumination: Backlit technology with precision optics produces even, low-glare light across the panel.
- Emergency-Ready: Includes integrated emergency backup to maintain lighting during power interruptions.
- Flexible Controls: 0-10V dimming support and included 18 AWG power leads plus 22 AWG dimming wires for straightforward integration.
- Robust Construction: White powder coat steel frame with polystyrene lens for durable, attractive ceiling appearance.
Specifications
- Product Code: PL22-30W-40K-D-EM
- Size: 2x2 ft
- Fixture Type: Flat Panel
- Wattage: 30W
- Lumens: 3,300 lm
- Color Temperature: 4000K
- CRI: 80
- Voltage: 120-277V
- Dimming: 0-10V
- Beam Angle: 120°
- Location Rating: Damp location, IC rated
- Warranty: 5 years
Emergency Operation
- Battery Backup: Built-in, factory installed
Installation & Compatibility
- Lays into standard 2x2 drop ceiling grids
Rebates & Certifications
- ETL Listed
- DLC Listed
- DLC listings often qualify for utility rebates. Check with your local utility before you buy.
Applications
- Ideal for office ceiling grids and commercial drop ceilings.
- Well suited to classrooms, corridors, and administrative areas in schools.
- Appropriate for healthcare facility common areas and examination rooms.
- Installation Tip: Use suspension, surface, or recessed mount kits (sold separately) to match your ceiling type.
- Spaces that need code-required emergency lighting
Frequently Asked Questions
Does this fixture have emergency backup?
Yes. It has a built-in battery backup when power is lost.
Is it dimmable?
Yes, with a 0-10V dimming control.
