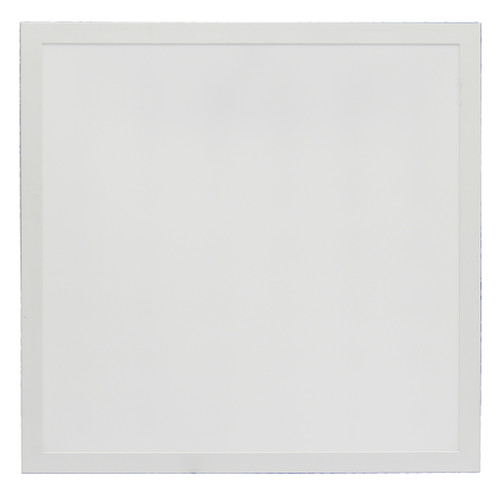

Daylight 2x2 LED Panel | Low-Profile Recessed/Surface Fixture For Offices, Schools And Healthcare 0-10V Compatible
Engineered for quick installation in drop ceilings and low-profile mounting, this Halco 2x2 flat panel replaces bulkier fixtures with a lightweight, energy-saving LED solution. The backlit design and precision optics deliver uniform Daylight illumination 5000K while 0-10V dimming support enables smooth control and reduced energy use in offices, schools, and healthcare spaces.
KEY FEATURES:
- Uniform Illumination: Backlit panel with precision optics produces even, low-glare light across work surfaces.
- Energy Saving: 30W design delivers 3,300 lumens for high efficacy and lower operating costs versus legacy fixtures.
- Dimmer Ready: 0-10V dimming capability enables zone control and energy optimization.
- Flexible Mounting: Compatible with recessed, surface, or suspended installations for retrofit and new construction.
- Lightweight Construction: Up to 25% lighter than traditional fixtures for easier handling and faster installs.
APPLICATIONS:
- Ideal for office ceiling grids and commercial drop-ceiling lighting.
- Well suited for schools and educational facilities seeking low-maintenance illumination.
- Appropriate for healthcare and institutional spaces requiring reliable, uniform light.
- Installation Tip: Use 0-10V control wiring for centralized dimming and energy scheduling in larger rooms.
SPECIFICATIONS:
- Product Code: PL22-30W-50K-D
- Topaz by Halco SKU: T75756
- Wattage: 30W
- Lumens: 3,300 lm
- Color Temperature: 5000K (Daylight)
- CRI: 80
- Voltage: 120-277V
- Input Frequency: 50/60Hz
- Dimmable: Yes (0-10V)
- Average Life: 50,000 hrs
- Beam Angle: 120 Degrees
- Power Factor: 0.9
- Operating Temp Range: -20°C (-4°F) to 45°C (113°F)
- Warranty: 5 years
- Dimensions: 26" L x 26" W x 4" H
- Weight: 5.6 lb
- Finish: White
- Lens: Polystyrene
- Housing Material: Steel
- Mount Options: Recessed (flange sold separately), Surface Mount, Suspended (cable sold separately)
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Listed, ETL Listed
- Location Rating: Suitable For Damp Locations
- Additional Ratings: IC Rated, RoHS Compliant
- Emergency Backup: Not Included (Emergency Backup Available: No)
