Description

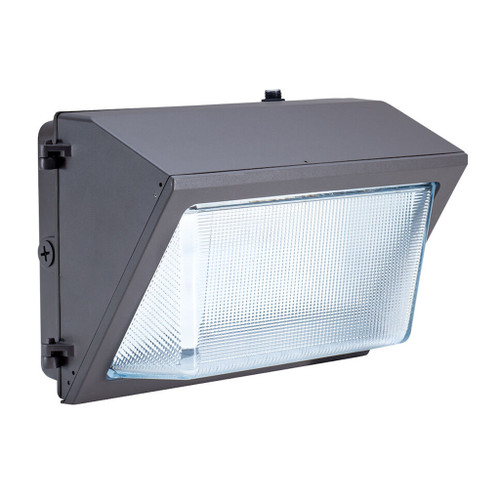

Power-Color Select LED Wall Pack | Photocell-Equipped Perimeter And Security Lighting Solution | CCT Selectable
Designed for perimeter, security, and multi-family exterior spaces, this Topaz LED wall pack delivers flexible lumen and color options to simplify stocking and installation. Power and color selectors plus an integrated photocell provide adaptable, dusk-to-dawn performance while reducing maintenance and energy costs compared to legacy HID fixtures.
KEY FEATURES:
- Power Selectable: Choice of 28W or 40W output to match site illumination needs.
- Color Selectable: Selectable 3000K, 4000K, or 5000K CCT for application-matched color rendering.
- Integrated Controls: Built-in dusk-to-dawn photocell for automatic on/off operation.
- Durable Construction: Aluminum housing with IK06 impact resistant glass lens and bronze finish for long outdoor life.
- Reliable Performance: Up to 5,600 lumens (40W), 50,000 hour rated life, and 0-10V dimming capability.
- Wet Location Rated: IP65 housing suitable for exterior perimeter and security lighting.
APPLICATIONS:
- Perimeter and security lighting for commercial and industrial sites.
- Exterior illumination for warehouses and service entrances.
- Multi-family residential exteriors such as condos and apartment walkways.
- Usage Tip: Use the integrated photocell to enable reliable dusk-to-dawn operation without additional controls.
SPECIFICATIONS:
- Product Code: WP/40W/PCTS/BZ/PC
- Topaz by Halco SKU: T72983
- Wattage: Selectable 28W or 40W
- Lumens: 3,920 lm (28W) or 5,600 lm (40W)
- Color Temperature: Selectable 3000K, 4000K, or 5000K
- CRI: 82
- Voltage: 120-277V
- Dimmable: Yes, 0-10V
- Beam Angle: 90 Degrees
- Average Life: 50,000 hrs
- Power Factor: 0.9
- Operating Temp Range: -40C to 50C (-40F to 122F)
- Finish: Bronze
- Lens: IK06 Impact Resistant Glass
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium, ETL Listed, RoHS
- Location Rating: IP65 Wet Location
- Warranty: 5-year limited warranty
