Description

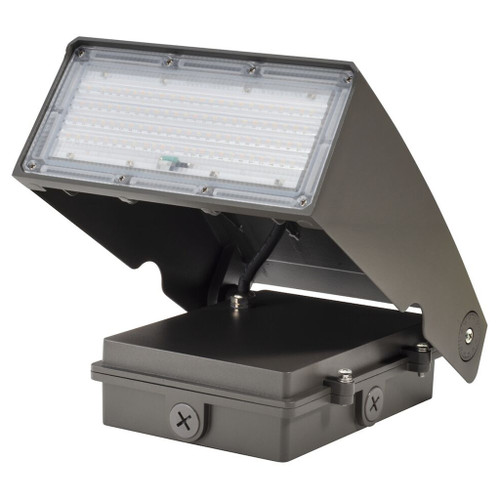

Outdoor Adjustable Wallpack | CCT Selectable Photocell Fixture For Perimeter Security Lighting IP65 Wet Location
Engineered for perimeter and security installations, this adjustable LED wallpack delivers configurable light output and color temperature while cutting maintenance costs. With selectable wattage and CCT, a built-in dusk-to-dawn photocell, and rugged IK10 polycarbonate lens, the fixture adapts to site requirements and withstands harsh outdoor conditions.
KEY FEATURES:
- Power Selectable: User-selectable 45W, 60W or 75W output for tailored illumination and energy control.
- CCT Selectable: Choose 3000K, 4000K or 5000K to match project color requirements and reduce SKU variety.
- High Output: Delivers 6,060 / 7,570 / 9,440 lumens across selectable wattages for perimeter and security lighting.
- Integrated Controls: Built-in photocell provides dusk-to-dawn operation for automatic on/off control.
- Durable Construction: Die-cast aluminum housing with IK10 impact-resistant polycarbonate lens and IP65 wet-location rating.
- Dimmable: 0-10V dimming capability for advanced control and energy savings.
- Reliable Performance: Rated for 50,000 hours with a 5-year warranty and power factor of 0.9.
APPLICATIONS:
- Ideal for perimeter security and exterior building illumination.
- Suitable for warehouses, loading docks, and commercial property exteriors.
- Great choice for multi-family communities, hotels, and condominium exterior lighting.
- Installation Tip: Aim and lock the adjustable polycarbonate lens up to 90° to minimize glare and meet dark-sky requirements.
SPECIFICATIONS:
- Product Code: WPA-75W-PCTS-BZ-PC
- Topaz by Halco SKU: T72979
- Wattage: Selectable 45W, 60W, 75W
- Lumens: 6,060 / 7,570 / 9,440 lm
- Color Temperature: CCT Selectable — 3000K, 4000K, 5000K
- CRI: 84
- Dimmable: Yes (0-10V)
- Voltage: 120-277V
- Average Life: 50,000 hours
- IP Rating: IP65 (Wet Location)
- Lens: IK10 Impact Resistant Polycarbonate
- Housing: Die-Cast Aluminum
- Warranty: 5-year limited warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: ETL Listed; DLC 5.1 Premium
- Environment: Suitable for Wet Locations
- Mounting: Mount not included; four 1/2" NPT hubs for conduit or accessories
