Description
Color Selectable 3000K/4000K/5000K | Type B Magnetic LED Retrofit | 18W to 60W Selectable | 120-277V | 0-10V Dimmable | Warm/Neutral/Cool White
Our LED Magnetic Retrofit Kit is the perfect plug-and-play replacement for 4-foot fluorescent strip lights and linear fixtures. Ideal when fixture parts are unavailable, this magnetic LED strip retrofit kit delivers powerful, energy-efficient light without replacing the entire fixture. The selectable wattage (18W–60W) and tunable CCT (3000K, 4000K, 5000K) make it suitable for a wide range of commercial and industrial applications. The high-CRI (>80) output produces up to 7,200 lumens of uniform illumination with smooth diffusion and no hotspots.
Product Specifications

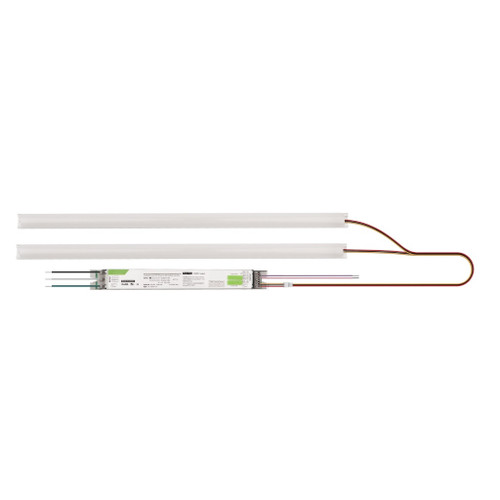

- Length: 4 Feet (includes 2 magnetic light bars and 1 driver)
- Wattage Selectable: 18W / 25W / 36W or 36W / 50W / 60W
- Lumen Output: Up to 7,200 lumens @5000K
- CCT Selectable: 3000K / 4000K / 5000K (default 5000K)
- Input Voltage: 120–277V AC, 50/60Hz
- Dimming: 0–10V dimmable, 100%–off range
- CRI: >80
- Mounting: Magnetic surface-mount retrofit design
- Housing: Lightweight white polycarbonate with smooth diffuser
- Ambient Temperature: -13°F to 113°F (-25°C to 45°C)
- Certifications: ETL Listed, DLC® Qualified for energy rebates
- Warranty: 5-Year limited
Benefits
- Installs in minutes with magnetic mounting—no drilling or rewiring needed
- Converts old fluorescent fixtures into efficient LED systems
- Selectable color temperature and wattage for custom brightness
- Long-lasting, energy-saving design reduces maintenance costs
- 0-10V dimming compatibility for advanced lighting control
- Ideal replacement solution when fluorescent drivers or lamps are obsolete
Applications
- Fluorescent strip and wrap fixture retrofits
- Commercial offices and retail spaces
- Warehouses, workshops, and garages
- Schools, hospitals, and industrial facilities
- Utility lighting and maintenance upgrades
