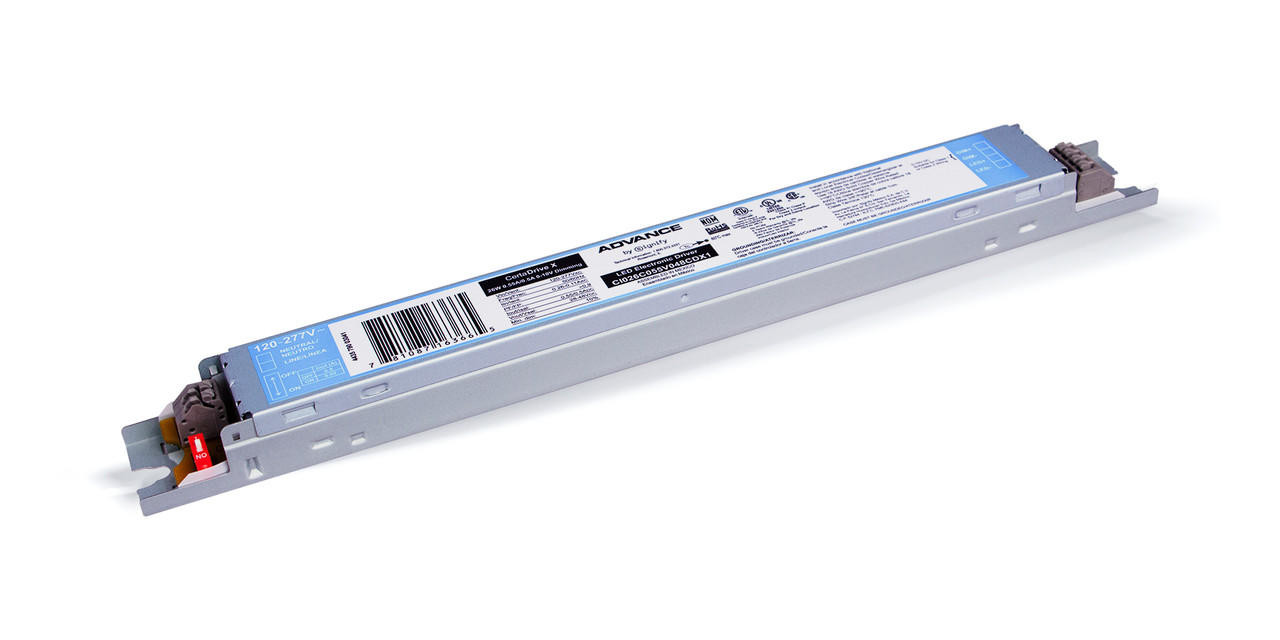

Name: Advance CI031C064V048CDX1M 31W LED Driver
Brand: Advance by Signify
SKU: PL-1799413
Price: 16.14 USD
Availability: InStock

Description

Replacement 31W CertaDrive X LED Driver | 625/640 mA | 120-277V

Advance CertaDrive X LED drivers are designed to meet basic lighting needs. These drivers are offered with specific voltage-current settings and are, thus, optimized with specifications that are appropriately suited for the application, making LED conversion affordable.

Features

50,000+ hour lifetime1
Excellent thermal performance
High power factor & low THD2

Benefits

Enables long life luminaire designs
Allows operability in indoor (low-bay) ambient conditions
Suitable for commercial indoor applications

Application

Indoor linear troffers, pendants
Office areas
Retail centers
Educational facilities

Disclaimers

*This product typically ships in 7 to 10 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will be longer than 10 business days to ship. Due to the speciality nature of this product, all sales are final.

Non-Returnable Item Notice:

Due to the sensitive electronic nature of LED drivers and the risk of improper installation, tampering, or programming, this item is non-returnable. Please confirm compatibility before purchasing. If your LED driver is defective upon arrival or during the warranty period, it may be eligible for a manufacturer warranty replacement. For assistance selecting the correct driver, please contact our support team.

Extra Information

Brand:

Advance by Signify

UPC:

929001799413

Order Number:

CI031C064V048CDX1M

Input Voltage (Vac):

120-277

Output Power (W):

31 Watt

Output Voltage (V):

28-48 Constant Current

Output Current (A):

0.625/ 0.64A

Efficiency@ Max Load and 75Â°C Case:

86 / 88

Max Case Temp. (Â°C):

Tc-life: 70Â°C / Tc-UL: 80Â°C

Input Current (A):

0.29 / 0.13

Current Type:

Fixed

Min Output Current:

625mA

Max Output Current:

640mA

Min Output Voltage:

28V

Max Output Voltage:

48V

Min Input Voltage:

120V

Max Input Voltage:

277V

Max. Input Power (W):

34.2

THD @ Max Load (%):

Power Factor (Efficiency):

>0.90

Surge Protection (Ring Wave, KV):

2.5

Envir. Protect. Rating:

UL damp & dry

Dimmable:

Yes

Dimming Type:

0-10V

Dimming Range:

10% ~ 100%

Driver Type:

Constant Current

Pack:
