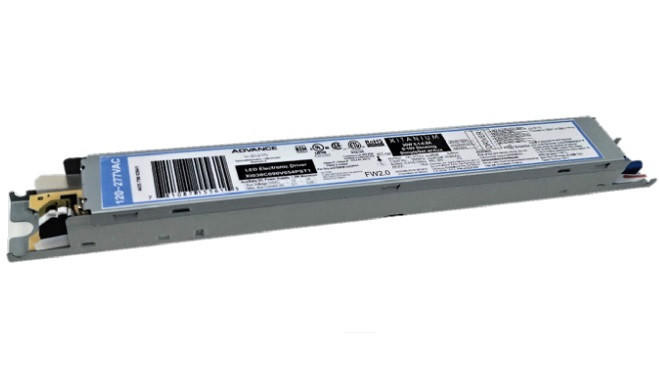

Advance XI030C090V054BST1M 30W LED Driver

Advance by Signify
SKU:
PL-2703713
Philips Advance XI030C090V054BST1M
Sold by the Case of:
18 units
To help ensure safe arrival this product and to give you the lowest possible price, this item is only sold in case quantities.  Price shown is per driver. View full description
$30.08
Customer Reviews
Pack
18

Description

Replacement 30W Xitanium LED Driver | 0-10V Dimming | 120-277V

Long-lasting and low maintenance, LED-based light sources are an excellent solution for all lighting applications. For optimal performance, these solutions require reliable drivers matching the long lifetime of the LEDs. The Advance Xitanium LED Outdoor Driver portfolio offers a range of products specially designed to operate LED solutions in outdoor applications. These drivers are designed for hard-wired integration into outdoor luminaires for the most rugged applications. They operate to specification under wide temperature and electrical ranges to ensure reliability.

Features

  • 50,000+ hour lifetime1
  • SimpleSet programmable
  • Large operating window
  • 1% minimum dim level
  • Constant Current Reduction (CCR) Dimming

Benefits

  • Slim profile housing enables easy design-in with excellent thermal performance
  • Enables simple, fast, flexible application-specific configurations
  • Enables fixture designs with comprehensive application coverage for various loads and lumen levels

Application

  • Indoor linear applications such as troffers and pendants
  • Office
  • Education
  • Healthcare
  • Retail
  • Big box stores

Disclaimers

*This product typically ships in 7 to 10 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will be longer than 10 business days to ship. Due to the speciality nature of this product, all sales are final.

Extra Information

Brand:
Advance by Signify
UPC:
929002703713
Order Number:
XI030C090V054BST1M
Input Voltage (Vac):
120-277
Output Power (W):
30 Watt
Output Voltage (V):
10-54 Class 2 Output
Output Current (A):
0.1 - 0.9
Efficiency @ Max Load and 75°C Case:
86.0% - 87.0%
Max Case Temp. (°C):
Life75°C UL85°C
Input Current (A):
0.29 - 0.13
Max. Input Power (W):
36.7
THD @ Max Load (%):
Power Factor @ Max Load:
>0.95
Surge Protect. (Ring Wave, KV):
2.5
Envir. Protect. Rating:
UL damp & dry
Dimming:
0-10V Analog Class 1 or Class 2 Wiring
Dimming Range (with specified dimmers):
1% - 100% (Constant Current)
Minimum Output Current (A):
0.003
Driver Type:
Constant Current
Other Comments:
Dimming source current: 150 µA
Pack:
18
