Description
Thin 8 Watt Battery Backup Driver | 100–347V | 90-Minute Runtime | UL924 & CEC Title 20 Compliant

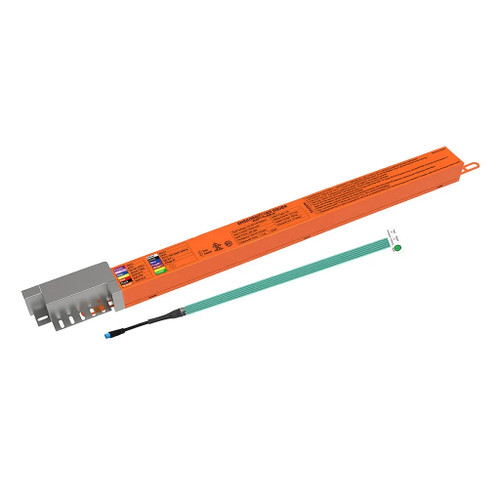

BillDa BLD-YT08D-170 is an 8-watt emergency LED driver engineered for ultra-thin LED panels and troffers, delivering reliable 90-minute operation during power loss. Designed with a 170V DC output, 100–347V input range, lithium-ion battery, and a slim patent housing, it installs cleanly into back-lit panels or troffer fixtures. This model supports CCT-selectable luminaires, includes built-in protections, and complies with UL924, CSA C22.2 NO.141, NFPA 101, and CA Title 20.
Product Specifications
- Input Voltage: 100–347Vac, 50/60Hz
- Input Current: 100mA max; Input Power: 6W max
- Output Voltage: 170V DC
- Emergency Power: 8W
- Emergency Runtime: 90 minutes minimum
- Recharge Time: 24 hours
- Battery: Lithium-ion, enclosed design
- Ambient Operating Temp: 5°C–50°C (41°F–122°F)
- Dimensions: 19.09" × 1.3" × 1.06" (485mm × 33mm × 27mm)
- Certifications: UL Listed (UL924), CSA C22.2 NO.141, NFPA 101, CEC Title 20
- Compatible Fixtures: LED troffers, back-lit panels, ultra-thin panels (factory or field install)
Benefits
- Slim, patent housing fits cleanly into LED panels and troffers
- Direct AC-input wiring for fast installation and compatibility with CCT-selectable fixtures
- Constant power output ensures predictable emergency brightness
- No flex conduit required—high-efficiency, cost-effective design
- Integrated lithium battery for stable performance and long life
- Multiple electronic protections: over-current, over-charge, over-discharge, short-circuit
- Automatic monthly 30-second test and annual 90-minute test sequence for safety compliance
- Ideal for commercial ceilings where troffers or panel lights require code-mandated emergency operation
Applications
- LED troffers (2×2, 1×4, 2×4)
- Back-lit and edge-lit LED panels
- Offices, schools, medical facilities, retail spaces
- Commercial emergency lighting compliance installations
- Locations requiring low-profile emergency gear within panel housings
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This product is shipped directly from the manufacturer.
Non-Returnable Item Notice:
Due to the sensitive electronic nature of LED drivers and the risk of improper installation, tampering, or programming, this item is non-returnable. Please confirm compatibility before purchasing. If your LED driver is defective upon arrival or during the warranty period, it may be eligible for a manufacturer warranty replacement. For assistance selecting the correct driver, please contact our support team.
