Description
Exterior Architectural Pathway Lighting with Shielded LED Optics - Color Select 30K/40K/50K

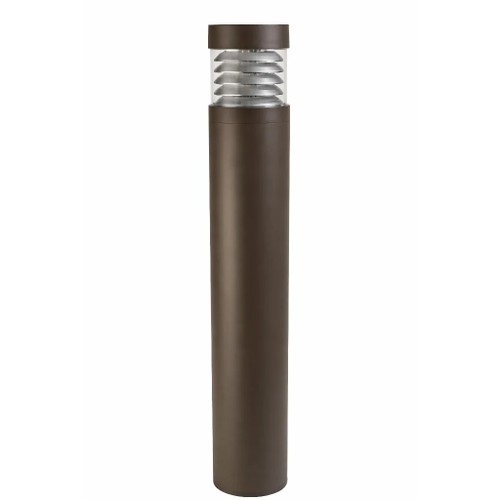

The BD05 flat top LED bollard light is a commercial outdoor fixture designed to deliver comfortable, controlled illumination along pedestrian pathways and landscaped areas. Featuring an integrated louver system and a flat-top round housing, this bollard helps shield the light source from direct view while maintaining consistent ground-level illumination. The architectural form factor makes it well suited for commercial properties where visual comfort and clean design are priorities.
Constructed with a durable die-cast aluminum housing and a UV-resistant powder-coated finish, the BD05 is designed for long-term performance in wet-location commercial environments. Anchor mounting bolts are included for secure surface installation.
Product Specifications
- Model: BD05
- Product Type: LED Bollard Light
- Housing Style: Flat top, round bollard
- Optical Control: Integrated louvers
- Wattage: 24W / 19W / 14W selectable
- Lumen Output: Up to approximately 3,200 lumens (setting dependent)
- Efficacy: Up to 140 lumens per watt
- Input Voltage: 120–277V AC
- Color Temperature: 3000K / 4000K / 5000K selectable
- Color Rendering Index: Ra >70
- Power Factor: >0.9
- Dimming: 0–10V
- Operating Temperature: -40°F to 113°F
- Protection Level: Wet location rated
- Housing Material: Die-cast aluminum
- Finish: Bronze powder coat
- Mounting: Surface mount
- Included Hardware: Anchor mounting bolts
- Rated Lifetime: >50,000 hours
- Warranty: 5-year limited
- Certifications: UL listed for U.S. and Canada
Benefits
- Integrated louvers help shield the light source from direct view
- Flat top housing provides a clean, architectural appearance
- Improves visual comfort in pedestrian environments
- Selectable wattage and color temperature for site flexibility
- Durable construction for long-term outdoor commercial use
- Includes anchor bolts for secure installation
Applications
- Commercial walkways and pedestrian paths
- Building perimeters
- Campuses and multi-building facilities
- Landscaped commercial properties
- Hospitality and mixed-use developments
FAQs
What is a louvered LED bollard light?
A louvered LED bollard light uses integrated louvers to shield the light source, helping reduce direct view of the LEDs while maintaining usable illumination at ground level.
How does a flat top bollard differ from a full cutoff bollard?
Flat top bollards with louvers focus on visual comfort and architectural appearance, while full cutoff designs prioritize strict uplight control. Both are used in commercial pathway applications, depending on project requirements.
Does the louvered design help reduce glare?
Yes. The integrated louvers help limit direct visibility of the light source, improving pedestrian comfort in outdoor environments.
Is this bollard suitable for commercial outdoor installations?
Yes. The BD05 is designed for commercial outdoor use and is wet-location rated for long-term exterior installation.
What color temperature is recommended for pedestrian areas?
For pedestrian pathways and comfort-focused environments, the 3000K warm white setting is commonly selected.
