Description
Efficient LED Type B HID Replacement | EX39 Base | CCT Selectable

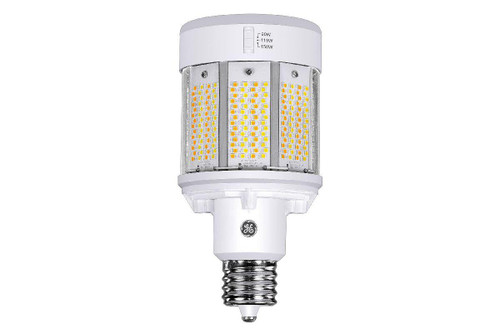

Upgrade your warehouse and industrial lighting with the GE LED/LC/ED28 LED lamp. This robust solution replaces traditional HID systems, providing enhanced efficiency and reduced maintenance. Choose from selectable color temperatures to suit your setting, with superior brightness and reliability.
KEY FEATURES:
- High Efficiency: Delivers up to 157 LPW for substantial energy savings.
- Selectable CCT: Choose between 3000K, 4000K, and 5000K to match existing lighting.
- Reliable Performance: Rated for 50,000 hours with consistent lumen output.
- Robust Design: Operates efficiently in temperatures from -40 to 50°C.
- Cost-effective Retrofit: Type B design bypasses the ballast, reducing maintenance needs.
APPLICATIONS:
- Perfect for industrial settings, large warehouses, and high-ceiling spaces.
- Ideal for enclosed fixtures and damp locations.
- Best used where high lumens and specialized CCT selections are beneficial.
SPECIFICATIONS:
- Wattage: 90 W/115 W/150 W
- Lumens: 14,000 lm/18,000 lm/23,500 lm
- Efficacy: 156 LPW/157 LPW/157 LPW
- Color Temperature: 3000K/4000K/5000K
- CRI: 70
- Voltage: 277-480V
- Base Type: EX39
- Shape: ED28
- Lifespan: 50,000 hours
- Dimmable: No (Dimming only with Variac control)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Certified
- Location Rating: Suitable for damp and enclosed locations
- Warranty: 5-year limited warranty
