Description
Built-in Bi-Level Dimmable Occupancy Sensor | Max Detection Radius 26.2 ft | IP20 Rated

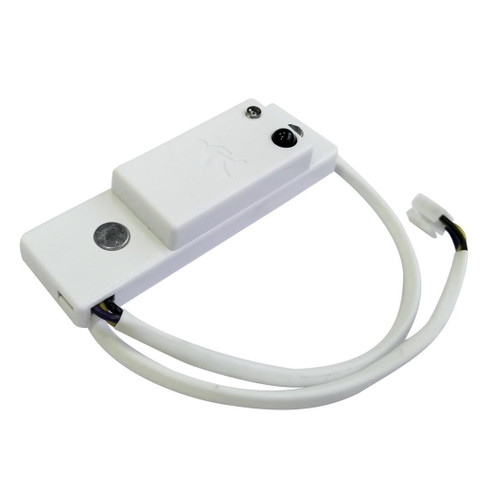

The Haisen US002-01VR-2 Microwave Motion Sensor is a compact, low-voltage sensor engineered for easy integration into LED fixtures. Operating on 12VDC with 1–10V dimming output, this sensor provides automated ON/OFF and bi-level dimming functionality to maximize energy efficiency. Ideal for ceiling-mounted installations, it features a built-in magnet for simplified alignment, and customizable settings via IR remote (HD03R) for optimal performance in commercial lighting systems.
Features
- 12VDC input voltage with 1–10V dimming control
- Compact square module with integrated magnet for tool-free installation
- Max detection radius: 8m (26.2 ft) at 6m mounting height
- Supports daylight sensing and bi-level dimming
- Adjustable detection sensitivity: 25% / 50% / 75% / 100%
- Remote configurable daylight thresholds: 2Lux–120Lux or Disable
- Programmable hold time: 5s to 30min
- Stand-by dimming levels: 10% / 20% / 30% / 50%
- Stand-by time settings: 0s to 30min or unlimited (+∞)
- IR remote memory and scene copy functionality
- Cable length: 300mm; Black (12V), Yellow (GND/DIM-), Purple (DIM+)
Benefits
- Enhances energy savings through motion-triggered lighting control
- Enables bi-level dimming during occupancy and vacancy periods
- Easily installed in compatible LED luminaires with quick connectors
- Allows quick scene programming via optional remote control
- Ideal for OEMs and retrofit applications in commercial environments
Applications
- Ceiling fixtures
- Troffer panels
- Triproof lighting
- LED panel lights
- Linear LED lamps and tubes
Product Specifications
- Brand: Haisen
- Model: US002-01VR-2
- Input Voltage: 10.5–15V DC
- Output Type: 1–10V dimming signal
- Operating Current: <30mA
- Standby Power Consumption: <0.5W
- Detection Range: Up to 8m (26.2 ft) radius
- Microwave Frequency: 5.8GHz ± 75MHz
- Microwave Power: <0.3mW
- Motion Detection Speed: 0.5–1.0 m/s
- Mounting Height: Max 6m (19.7 ft), ceiling-mounted
- Dimming Levels (Stand-by): 10% / 20% / 30% / 50%
- Hold Time Options: 5s to 30min
- Stand-by Time Options: 0s to 30min / unlimited
- Daylight Threshold Options: 2Lux / 10Lux / 30Lux / 50Lux / 80Lux / 120Lux / Disable
- Control Cable Length: 300mm
- IP Rating: IP20
- Operating Temperature: -40°C to +80°C
- Warranty: 5 Years
- Compatible Remote: HD03R (sold separately)
