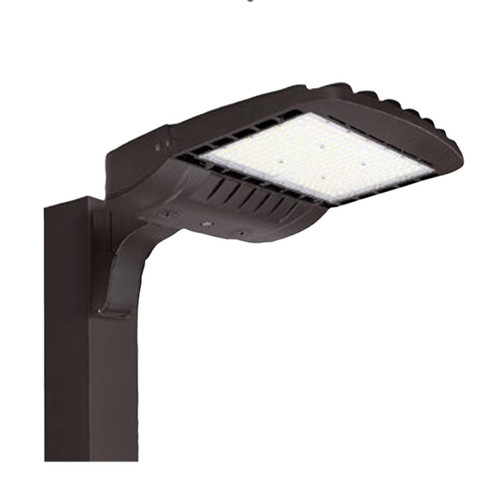

SAL-150-T3-40-U Energy-Efficient SekTor Area Fixture With Type 3 TIR Optics | Cool White (4000 K) | IP65 Outdoor Performance
Designed to reduce energy use and maintenance on large outdoor sites, this SekTor Area fixture delivers high-efficiency 150W illumination with precision TIR optics and installer-friendly controls, simplifying upgrades for parking lots, dealerships, and campus grounds.
KEY FEATURES:
- Installer Friendly: Pre-installed easy-access controls port and multiple mounting options speed field installation.
- High Efficacy: Delivers >145 LPW for significant energy savings versus legacy HID systems.
- Precision Optics: PC TIR optics with Type 3 distribution provide uniform site illumination and reduced glare.
- Rugged Construction: Die-cast aluminum housing with corrosion-resistant powder coat and IP65 rating for outdoor durability.
- Control Ready: Standard 0-10V dimming and compatible with plug-and-play DC motion sensors and photocell options.
APPLICATIONS:
- Parking Lots
- Auto Dealerships
- Campus And Site Lighting
- Tip: Specify Type 3 distribution to optimize aisle and perimeter uniformity.
SPECIFICATIONS:
- Wattage: 150W
- Nominal Lumens: 21,641 - 21,935
- Efficacy: 145 LPW
- Color Temperature: 4000K
- CRI: >70 CRI
- Voltage: 120-277VAC (UNV)
- Amperage: 120VAC (1.25A), 277VAC (0.54A)
- Distribution: Type 3
- Dimming: 0-10VDC Dimming
- Housing: Die-Cast Aluminum Housing
- Lens: PC TIR (Total Internal Reflection) Optics
- L70 Lumen Maintenance: >100,000 Hours
- Listings: cULus, DLC Premium, FCC
- Environment: IP65 Rated, 3G Rated
- Weight: 14.92 lbs
- Warranty: 5 Years Standard
