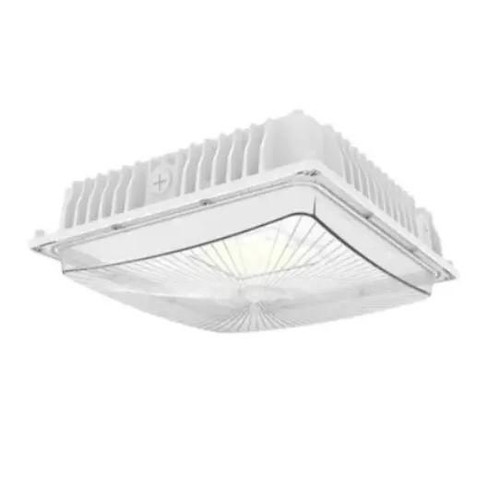

CSP-60-CS-U-WH-PC Durable Low-Profile Canopy Luminaire For Covered Outdoor Spaces | CCT Selectable | Photocell & Universal Voltage
Designed for fast retrofits and new canopy installations, the Halco ProLED Select Slim Canopy (SKU 20865) delivers selectable CCT, built-in photocell control, and contractor-friendly mounting for reduced labor and lower energy costs.
KEY FEATURES:
- Quick Install Mounting Plate: Removable mounting plate enables fast, secure installation in ceilings or pendant mounts.
- CCT Selectable: Field-selectable between 3000K, 4000K and 5000K for exact color tuning on site.
- Integrated Controls: Factory-configured photocell provides dusk-to-dawn switching for automated energy savings.
- Robust Performance: Die-cast aluminum housing, IP65 wet-location rating, 4kV surge protection and DLC Premium for reliable outdoor use.
- Energy Efficient: High efficacy luminaire with 0-10V dimming compatibility lowers operating costs and simplifies control integration.
APPLICATIONS:
- Exterior Canopies
- Parking Garages
- Carports and Covered Walkways
- Usage Tip: Use the integrated photocell for automated dusk-to-dawn control and select CCT on site to match adjacent lighting.
SPECIFICATIONS:
- Product Code: CSP-60-CS-U-WH-PC
- Wattage: 60W
- Color Temperatures & Output: 3000K — 7,500 lm (125 LPW); 4000K — 8,100 lm (135 LPW); 5000K — 7,800 lm (130 LPW)
- CCT: CCT Selectable between 3000K-4000K-5000K
- Voltage: Universal 120-347VAC
- Amperage: 120VAC (0.50A), 277VAC (0.21A)
- CRI: >70
- Efficacy: 125-135 LPW (varies by CCT)
- Dimming: 0-10VDC Dimming
- Surge Protection: Built-in 4kV
- L70 Lifetime: >100,000 Hours @ 25°C
- Housing: Die-cast aluminum with powder coat finish
- Lens: Polycarbonate
- Operating Temperature: -40°C to 55°C
- Environment/Rating: IP65, UL Listed For Wet Location
- Listings: cULus, DLC 5.1 Premium, FCC, RoHS Compliant
- Finish: White
- Option: Integrated Photocell
- Weight: 5.85 lbs
- Warranty: 5 Years Standard
