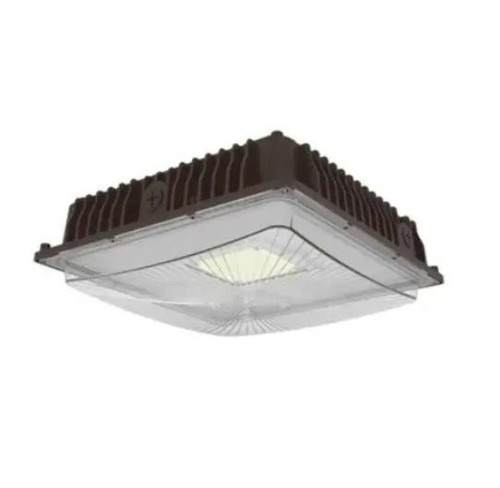

CSP-40-CS-U-BZ-MS Low-Profile Canopy Fixture With Field-Selectable CCT | Motion Sensor For Covered Outdoor Areas | CCT Selectable
Designed for fast canopy retrofits and new construction, this slim luminaire features a quick-install mounting plate and field-selectable CCT to simplify installations while reducing energy use via integrated motion sensing.
KEY FEATURES:
- Fast Installation: Quick-install mounting plate reduces labor time for contractors and speeds project completion.
- Field-Selectable CCT: Choose 3000K, 4000K or 5000K on site for consistent color across installations.
- Energy-Saving Controls: Integrated RF bi-level occupancy sensing and 0-10V dimming cut runtime and energy costs.
- Durable Wet-Rated Design: IP65 die-cast aluminum housing and tamperproof polycarbonate lens stand up to harsh outdoor environments.
- Reliable Protection: Built-in 4kV surge protection helps ensure long-term performance.
APPLICATIONS:
- Exterior canopies and covered walkways.
- Parking garages and ramps requiring durable wet-location lighting.
- Carports and breezeways where a low-profile fixture is preferred.
- Tip: Use motion sensing to reduce energy use during low-traffic periods.
SPECIFICATIONS:
- Wattage: 40W
- Lumens (3000K): 5,000
- Efficacy (3000K): 125 LPW
- Lumens (4000K): 5,400
- Efficacy (4000K): 135 LPW
- Lumens (5000K): 5,200
- Efficacy (5000K): 130 LPW
- Color Temperature: CCT Selectable (3000K / 4000K / 5000K)
- CRI: >70
- Voltage: Universal 120-347VAC
- Amperage: 120VAC (.33A), 277VAC (.15A)
- Dimming: 0-10VDC Dimming
- Surge Protection: 4kV
- L70 Lifetime: >100,000 Hours @ 25°C
- IP Rating: IP65 (Wet Locations)
- Housing: Die-Cast Aluminum With Powder Coated Finish
- Lens: Tamperproof Polycarbonate
- Finish: Bronze
- Motion Sensor: Integrated RF Bi-Level Occupancy Sensing
- Weight: 5.17 lbs
- Listings: cULus, DLC Premium, FCC
- Warranty: 5 Years Standard
