Description

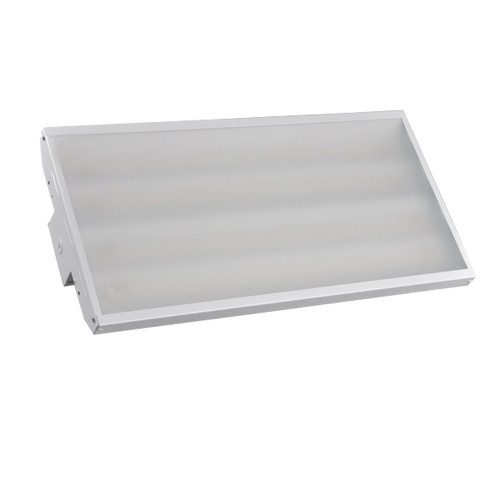

LHB-3-WS-40-U-EM Selectable Linear Highbay | Cool White 4000K LED High Bay For Warehouses, Retail & Gyms - Adjustable 220/200/180W With Emergency Backup And 0-10V Dimming
The Halco ProLED Select Linear Highbay simplifies high-bay upgrades by combining selectable wattage, long life, and an integrated emergency battery to keep critical spaces illuminated during outages. Its high output and DLC 5.1 Premium rating make it an efficient, low-maintenance choice for large commercial and industrial facilities.
KEY FEATURES:
- Wattage Flexibility: Selectable 220W, 200W, or 180W to match desired light levels and energy budgets.
- Included Emergency Backup: Factory-supplied emergency battery backup keeps essential areas lit during power interruptions.
- High Output: 30,000 lumens of wide-distribution light for large spaces.
- Dimmable Controls: 0-10V dimming for integration with building controls and energy savings.
- Long Life & Reliability: 100,000 hour average life with a 5-year warranty reduces maintenance and replacement costs.
- Durable Construction: Steel housing with frosted polycarbonate lens and white finish for commercial installations.
APPLICATIONS:
- Distribution warehouses and storage facilities requiring consistent overhead illumination.
- Big box retail and manufacturing plants where high lumen output and reliability are essential.
- Gymnasiums and recreation centers needing uniform, glare-controlled high-bay lighting.
- Installation Tip: Use the included chain and V-hook for secure mounting and set wattage to balance light levels with energy targets.
SPECIFICATIONS:
- Wattage: Selectable 220W, 200W, 180W
- Lumens: 30,000
- Average Life: 100,000
- Color Temperature: 4000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277V & 347-480V
- Power Factor: 0.9
- Min Operating Temp: -40C (-40F)
- Max Operating Temp: 55C (131F)
- Included Accessory: Chain & V Hook and Emergency Battery Backup
- Finish: White
- Lens: Frosted Poly Carb
- Housing Material: Steel
- Weight Per Item: 16.5
- Sold In Multiples Of: 1
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium - UL Listed - RoHS Compliant - FCC
- Warranty: 5-year limited warranty
