Description

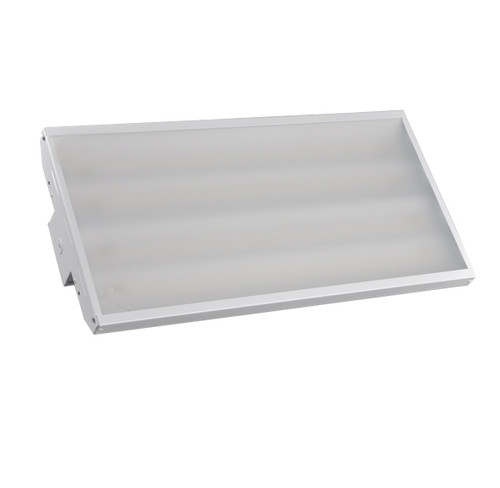

LHB-1-WS-40-U-LVMS Selectable Linear Highbay | Cool White 4000K LED With Low-Voltage PIR Sensor And 0-10V Dimming
Designed for commercial and industrial retrofits, this Halco ProLED selectable linear highbay delivers focused, high-output illumination while cutting maintenance and energy costs. The integrated low-voltage PIR motion sensor and selectable wattage options make it ideal for large spaces needing adaptive, occupancy-driven lighting.
KEY FEATURES:
- Wattage Selectable: Choose 110W, 90W, or 70W to match mounting height and illumination needs while reducing energy use.
- Integrated Motion Sensing: Low-voltage PIR sensor included for occupancy-based control and automatic energy savings.
- Durable Construction: White steel housing with frosted polycarbonate lens for even, wide beam distribution in industrial settings.
- Dimming & Controls: 0-10V dimmable and compatible with integrated control options for tailored lighting strategies.
- Long Life & Performance: 15,000 lumens output with a 100,000 hour average life and 0.9 power factor for reliable operation.
APPLICATIONS:
- Distribution warehouses and big-box retail spaces.
- Gymnasiums and manufacturing facilities requiring high-bay illumination.
- Commercial and industrial environments where occupancy sensing reduces runtime.
- Usage Tip: Use lower wattage settings with the PIR sensor in intermittently occupied aisles to maximize energy savings.
SPECIFICATIONS:
- Wattage: Selectable 110W, 90W, 70W
- Lumens: 15,000
- Average Life: 100,000 hours
- Color Temperature: 4000K (Cool White)
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277V & 347-480V
- Input Frequency: 50/60Hz
- Power Factor: 0.9
- Beam Type: Wide
- Included Accessory: Chain & V Hook and Low Voltage PIR Motion Sensor
- Finish: White
- Lens: Frosted Poly Carb
- Housing Material: Steel
- Min Operating Temp: -40C (-40F)
- Max Operating Temp: 55C (131F)
- Warranty: 5 years
- Sold In Multiples Of: 1
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings & Qualifications: DLC 5.1 Premium, UL Listed, RoHS Compliant, FCC
- Market: Commercial, Industrial
- Emergency Backup: Emergency backup available (driver option)
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
