Description
LHB-3-WS-40-U-LVMS Selectable-Wattage Linear High Bay | Cool White 4000K For Warehouses, Retail & Gyms With Low-Voltage PIR

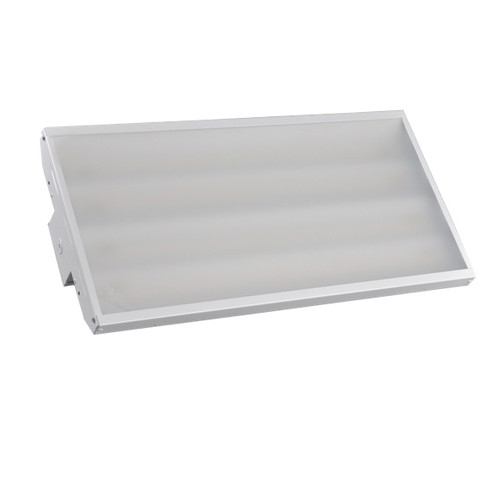

Designed to reduce energy and maintenance in commercial spaces, the Halco 22162 ProLED Select Linear High Bay delivers 30,000 lumens with selectable wattages and an integrated low-voltage PIR motion sensor to provide efficient, targeted illumination for warehouses, retail, and gymnasiums.
KEY FEATURES:
- Selectable Wattages: Choose 220W, 200W, or 180W to match facility lumen needs and cut energy use.
- Integrated Motion Sensing: Low-voltage PIR sensor included for occupancy-based control and runtime savings.
- High Output & Wide Beam: 30,000 lumens with a wide beam distribution for uniform area lighting.
- Long Life: Rated for 100,000 hours to minimize replacements and downtime.
- Dimmable: 0-10V dimming support for smooth brightness control and integration with building controls.
APPLICATIONS:
- Distribution warehouses and fulfillment centers.
- Retail and big-box store aisles.
- Gymnasiums and indoor sports facilities.
- Usage Tip: Pair selectable wattage with occupancy controls to maximize energy savings during off-peak periods.
SPECIFICATIONS:
- Wattage: Selectable 220W, 200W or 180W
- Lumens: 30,000
- Color Temperature: 4000K (Cool White)
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277V & 347-480V
- Average Life: 100,000 hours
- Beam Type: Wide
- Power Factor: 0.9
- Min Operating Temp: -40C (-40F)
- Max Operating Temp: 55C (131F)
- Included Accessory: Chain & V Hook and Low Voltage PIR Motion Sensor
- Finish: White
- Lens: Frosted Poly Carb
- Housing Material: Steel
- Weight Per Item: 16.5
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium - UL Listed - RoHS Compliant - FCC
- Market: Commercial, Industrial
