Description

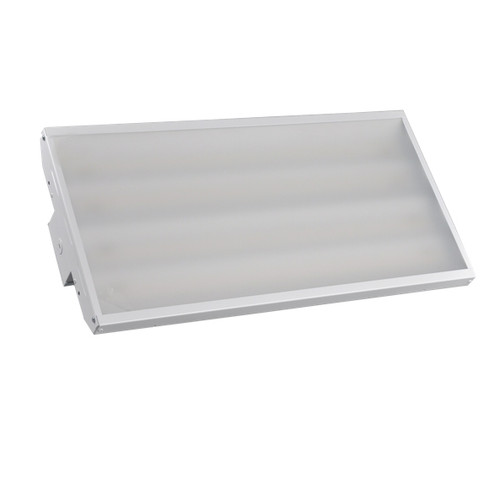

LHB-3-WS-40-U-PIRMS Highbay With PIR Motion Sensor | Cool White 4000K 0-10V Dimmable Universal Voltage LED For Warehouses, Retail, And Gyms
Designed for large commercial and industrial spaces, this selectable-wattage linear highbay simplifies retrofits and new installs by combining high lumen output with integrated PIR motion sensing and universal voltage compatibility to reduce energy use and maintenance cycles.
KEY FEATURES:
- Wattage Selectable: Choose 220W, 200W, or 180W to match required illumination levels and optimize energy consumption.
- Integrated Motion Sensing: Built-in PIR sensor enables automated on/off and occupancy-based energy savings in warehouses and retail aisles.
- Dimmable Control: 0-10V dimming support for daylight harvesting and zone-level light management.
- Durable Construction: Steel housing with frosted polycarbonate lens for long life in industrial environments.
- High Performance: 30,000 lumens with long 100,000-hour rated life minimizes relamping and downtime.
APPLICATIONS:
- Distribution warehouses and high-bay storage facilities.
- Big-box retail and large-format stores.
- Manufacturing facilities and gymnasiums.
- Usage Tip: Combine the PIR sensor with 0-10V controls for scheduled dimming and occupancy-based zone lighting.
SPECIFICATIONS:
- Wattage: Selectable 220W, 200W, 180W
- Lumens: 30,000
- Color Temperature: 4000K
- CRI: 80
- Average Life: 100,000
- Voltage: 120-277V & 347-480V
- Dimmable: Yes (0-10V)
- Power Factor: 0.9
- Min/Max Operating Temp: -40C (-40F) to 55C (131F)
- Included Accessory: Chain & V Hook and PIR Motion Sensor
- Beam Type: Wide
- Finish: White
- Lens: Frosted Poly Carb
- Housing Material: Steel
- Weight Per Item: 16.5
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium, UL Listed, RoHS Compliant, FCC
- Location Rating: Suitable for commercial and industrial indoor applications
