Description

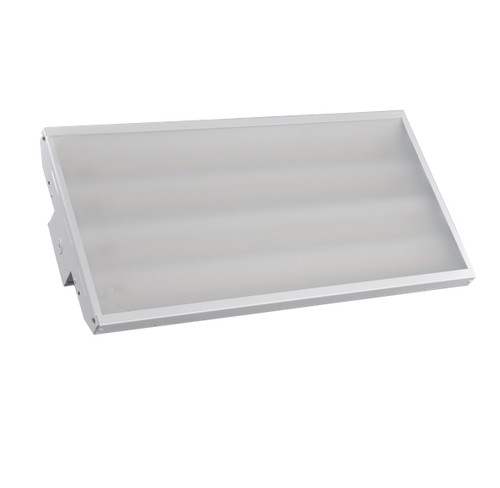

LHB-3-WS-50-U-EM-LVMS Selectable-Wattage Linear High Bay | Daylight | Emergency Backup & LV Motion Sensor For Warehouses
Designed for large commercial and industrial spaces, this selectable-wattage linear high bay simplifies upgrades by offering adjustable power levels, integrated emergency backup, and an on-board low-voltage PIR motion sensor to lower energy use and maintenance in warehouses and big-box retail environments.
KEY FEATURES:
- Wattage Flexibility: Switch between 220W, 200W, and 180W to match illumination needs and optimize energy use.
- Integrated Emergency Backup: Emergency battery backup is included to maintain illumination during power interruptions.
- Motion Sensing: Low-voltage PIR sensor reduces run-time in low-traffic periods for additional energy savings.
- High Output & Long Life: Produces 30,000 lumens with an average life of 100,000 hours to minimize maintenance.
- Dimmable Control: Compatible with 0-10V dimming for flexible lighting control strategies.
APPLICATIONS:
- Distribution warehouses and logistics centers.
- Big-box retail stores and gymnasiums.
- Manufacturing facilities requiring high, uniform illumination.
- Tip: Hang using the included chain and V-hook for quick pendant mounting and optimal spacing.
SPECIFICATIONS:
- Wattage: Selectable 220W, 200W or 180W
- Lumens: 30,000
- Color Temperature: 5000K
- CRI: 80
- Voltage: 120-277V & 347-480V
- Dimmable: Yes (0-10V)
- Wattage Selectable: Yes
- Average Life: 100,000
- Power Factor: 0.9
- Input Frequency: 50/60Hz
- Beam Type: Wide
- Warranty: 5 years
- Min Operating Temp: -40C (-40F)
- Max Operating Temp: 55C (131F)
- Finish: White
- Lens: Frosted Poly Carb
- Housing Material: Steel
- Included Accessory: Chain & V Hook and Emergency Battery Backup and Low Voltage PIR Motion Sensor
- Weight Per Item: 16.5
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium - UL Listed - RoHS Compliant - FCC
- Location Rating: Suitable for commercial and industrial applications
- Packaging: Sold in multiples of 1
- Warranty: 5-year limited warranty
