Description

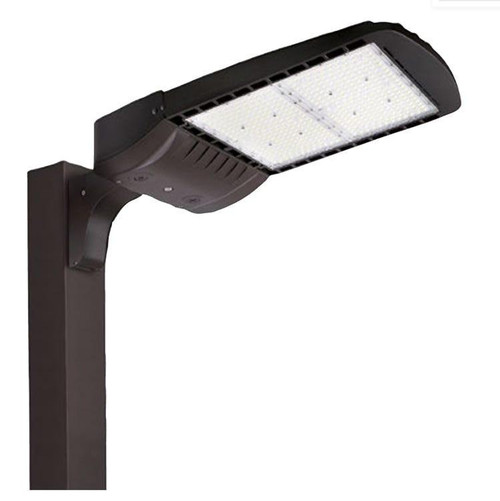

SAL-200-T5-40-U High-Efficiency Outdoor Area Luminaire For Large Sites | Cool White (4000 K) | High Efficacy
Engineered for large outdoor sites, the SekTor Area Light simplifies installations while delivering energy savings and long-life performance; the pre-installed controls port accepts a quick-connect DC motion sensor for fast commissioning and reduced maintenance cycles.
KEY FEATURES:
- High Efficacy: Delivers industry-leading lumen output with >145 LPW for reduced energy use compared to HID fixtures.
- Quick Controls Integration: Pre-installed, easy-access controls port accepts the quick-connect DC motion sensor for fast setup.
- Robust Construction: Corrosion-resistant die-cast aluminum housing with powder coat finish and hinged driver compartment for easy service.
- Precision Optics: PC TIR optics provide uniform distribution and visual comfort across the full aperture.
- Multiple Mounting Options: Installer-friendly mounts and accessory support for flexible site configurations.
APPLICATIONS:
- Ideal for parking lots and parking garages.
- Well suited for campus and municipal site lighting.
- Excellent for roadways and security perimeter illumination.
- Usage Tip: Pair with the DC motion sensor for bi-level control and additional energy savings.
SPECIFICATIONS:
- Wattage: 200W
- Lumens: 29,164 (Type V, 4000K)
- Efficacy: 146 lm/W
- Color Temperature: 4000K
- CRI: >70
- Voltage: 120-277VAC
- Distribution: Type V
- Dimming: 0-10VDC Dimming
- L70: >100,000 Hrs
- Amperage: 120VAC(1.67A) 277VAC(.72A)
- Housing: Die-Cast Aluminum Housing
- Lens: PC TIR (Total Internal Reflection) Optics
- Listings: cULus, DLC Premium, FCC
- Environment: IP65 Rated, 3G Rated
- Weight: 20.9 lbs
- Warranty: 5 Years Standard
